EV Charger HMI Panels: Put Backup Inputs Where Rain and Gloves Find Them

For an outdoor EV charger, allocate any required rain, glove or service fallback action to an input path that the assembled charger can actually execute. A separate key may help, but a sealed front surface does not prove wet-hand usability, and a key connected to the same failed controller is not an independent backup. Approve the layout with its intended input technology, controller conditions and observed response.

Recent physical-HMI testing and its limits

In its touch-panel testing article, published on 2026-10-06, SABO describes a robot operating real HMI hardware, a simulator supplying device states and a camera checking visible responses. It reports shifted controls as findings instead of compensating for their changed positions.

The service article explains why repeated software revisions can leave physical operation under-tested. It treats observed actions and feedback as evidence and says this approach complements unit, integration and hardware-in-the-loop testing. It does not publish an outdoor charger rain test, a wet-glove acceptance result or a Baoshengda qualification. A dry automated touch test cannot be substituted for those conditions.

SABO also describes turning requirements into testable cases and having a tester approve them before execution. The control map needs an agreed reference. A test that quietly follows a displaced button could conceal the positional change the buyer needed to inspect; record a changed target as a reviewed revision.

For a charger buyer, specify whether the proposed fallback must still perform the intended action under the specified rain, glove and controller conditions. A physical key that uses the same unavailable power, processor or communication path may not provide that fallback. A display change alone cannot establish that the charger executed the command.

Freeze the panel drawing and mounted position together with the controller and firmware versions. Define each intended action, the visible or logged confirmation, the wet and glove conditions, and what must happen when nobody deliberately presses a control. Keep printed position, electrical input and charger response as separate checks.

The IEA's 2026 charging chapter provides deployment context. The U.S. Access Board's EV charging design recommendations, last updated in July 2023, address interfaces and operable parts. These are background sources. A panel drawing or added button alone does not establish accessibility of the complete installed charger.

Baoshengda's HMI panel solution work fits the component side of this problem: display windows, membrane-switch or touch input areas, overlay printing, sealed front surfaces, flex-tail routing, connector planning and sample review. It does not define the charging protocol, payment system, safety logic or complete charger enclosure.

Which inputs should stay outside the touchscreen?

Start by listing the actions that a driver, technician or site operator may need when the screen is wet, bright, cold, slow to wake or partly damaged. Review whether each action needs a separate input zone and which charger resources it still requires. Candidate functions may include display wake-up, requesting assistance, navigation or an authorized session-stop request. The charger-system owner must define the allowed behavior; a panel supplier cannot assign charging, emergency-stop or payment authority from the printed icon.

Do not move every menu item into keys. That creates clutter and adds sealing work. For an action affecting session recovery or field service, specify how the user locates it, what feedback follows and which faults the path is expected to tolerate. Safety-related functions need the appropriate system design and validation. Ordinary HMI keys are not automatically safety-rated controls. If an action is low frequency and can wait for the screen, keep it in software.

Put the display window and input zones in separate jobs

A charger front panel may look like one flat surface, but the display window and the input area do different jobs. The window needs optical clarity, scratch control, cleaning resistance and a stable adhesive frame. The input zone needs usable spacing, durable legends and a defined circuit path. Mechanical keys also need agreed feel and actuation-force criteria; capacitive touch zones need their own sensing and rejection settings. Neither sealing nor a printed icon establishes the contact technology. Treating both areas as one decorative overlay often leads to late sample changes.

For an HMI panel sample, mark the display active area, cover lens border, icon key positions, LED or backlight windows if any, sealing edge and tail exit. Leave enough land around the window, so adhesive does not creep into the visible area. Leave enough space between input icons so a gloved finger does not hit two actions at once. If the charger uses a raised bezel, check whether the bezel protects the panel or traps water along the edge.

Rain, gloves and glare change the key layout

Outdoor chargers see a mixed user group. Some users approach with wet hands. Others wear gloves in winter. Bright sun can reduce display contrast, while night use can make small icons harder to read. Panel construction, input settings and the installed geometry must be assessed together. Sealing addresses ingress at the agreed boundary, while rain and glove operation require separate functional evidence.

Check the proposed input-zone size and spacing with the specified gloves and mounted bezel. Record any water accumulation at the screen edge instead of assuming that a larger icon prevents false input. Avoid placing the most important key at the same height as a raised lip that a glove may strike first. If the front finish is glossy, check glare across the printed icons. If the charger must support night use, define whether the key symbols need a backlit membrane switch, reflective contrast or a separate indicator.

The tradeoff is panel complexity. More physical inputs can improve fallback operation, but they add printed layers, circuit routing, sealing borders and approval items. Compare a limited input group with a crowded keypad using the required actions and actual users. Extra keys are useful only when their functions, spacing, feedback and dependencies are defined.

Record intended inputs, unwanted inputs and recovery separately

Agree the exposure method, glove type, duration and acceptance criteria before testing the assembled sample. Use a controlled fixture and the specified liquid or cleaning routine. Do not improvise wet tests on energized charging equipment; the responsible test team must define the equipment state and safe test arrangement.

• Establish dry, bare-hand operation at each required input position. Record the command and its confirmation.
• Run a no-intended-input period under the agreed moisture condition. Record any input event, unwanted action or unexpected repeat.
• Check intended glove inputs under the same defined condition, including adjacent-zone activation or a missed input. Capacitive sensing is not qualified by asking users to press harder.
• After wiping or clearing the surface, record the recovery behavior and any permitted lockout. Check whether an earlier touch is incorrectly retained or replayed.
• Repeat the relevant cases after an artwork, mounted-position, cover, input-setting or firmware change. An adjusted test position must be a documented revision, not hidden compensation.

TI's 2019 capacitive-touch guidance describes guard channels and software that can reject invalid moisture or multi-sensor inputs. That is a controller-design example, not a feature guaranteed by an overlay or by every touch implementation. Ask the electronics owner which rejection, lockout and recovery behavior is actually implemented.

For each result, retain the sample and drawing revision, input technology, controller settings, exposure and glove details, expected response and observed result. A pass is limited to that tested configuration; it does not establish an IP rating, complete-charger compliance or operation during every controller failure.

Tail route and connector access decide the field result

The front surface can pass a visual review while the tail route fails in the enclosure. EV charger panels often sit behind a metal door, molded front cover, gasket, display module, card reader or service bracket. If the flex tail exits into a tight bend, rubs on a sharp edge or blocks module removal, the field problem may appear after installation rather than during bench testing.

Define the tail exit side before artwork is frozen. Show the connector location, available bend radius, stiffener direction, service opening, screw posts and any gasket crossing. If the display module or payment reader must be removed during service, keep the HMI connector reachable without peeling the front panel.

One installation risk is water protection planned only at the front surface. A front sealing arrangement may leave the tail slot, connector pocket or cable path exposed to moisture. The sample package should therefore include both the front artwork and the rear enclosure route.

What should the buyer send for the first HMI sample?

Send one front-panel drawing and one enclosure-side drawing. The front drawing should show display size, visible window, printed border, icon positions, key function priority, backlight or indicator needs, surface finish and cleaning condition. The enclosure drawing should show tail route, bend radius, connector, gasket, screw posts, card reader or display module, cable clamps and service access.

Also include the operating context: outdoor or semi-outdoor location, rain exposure, glove use, expected temperature range, UV exposure, cleaning agent, target quantity and whether the part is a new charger design or a replacement for an existing panel. If a current sample already failed, send photos of the edge, tail and connector area rather than only the front artwork.

Send the front-panel and enclosure drawings, required rain/glove actions, input technology, controller scope, exposure and cleaning conditions, and expected feedback through the Request Quote path. Include the test record and unresolved dependencies if available; mark unknown settings instead of inventing a complete specification. Baoshengda can review the panel stack, windows, input-zone layout, sealing edge and tail route, while the charger-system team retains responsibility for the controller and complete equipment validation.

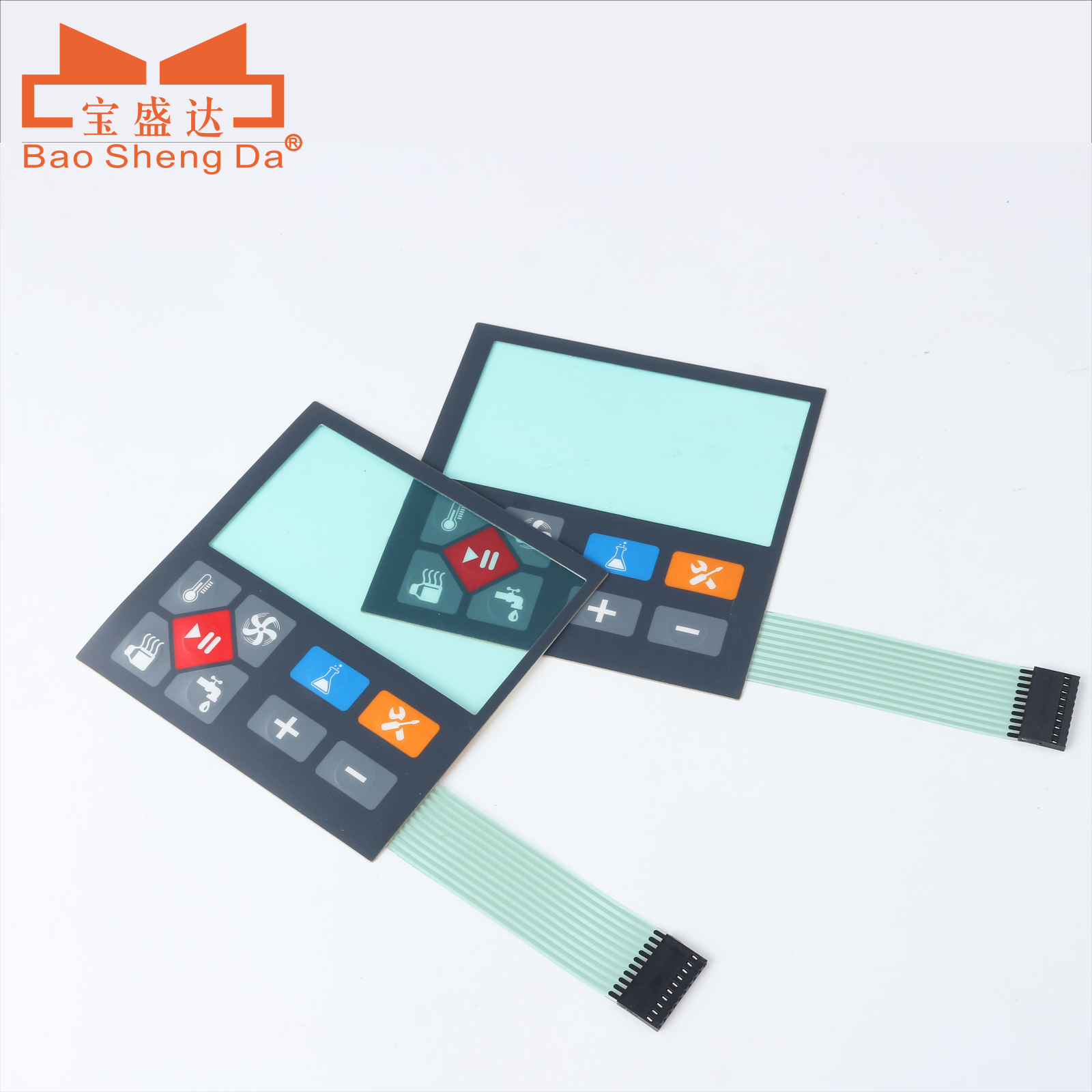

The photograph shows loose Baoshengda panel samples, not panels installed on a charger or evidence of rain, glove, sealing or electrical performance tests.
