FPC Membrane Switch ZIF Tail: Match Stiffener to Contact Exposure

A ZIF connector does not accept a tail description such as "five contacts, contacts up" by itself. The FPC membrane switch drawing should define contact exposure, stiffener length and location, finished insertion thickness, tail width, pitch and viewing direction as one interface. If one value changes without the others, the tail can stop short of the connector contact zone, buckle during insertion or lock without reliable electrical engagement.

The safest RFQ starts with the mating connector part number and PCB-side orientation. Build the tail-end detail around that hardware, then approve the keypad and connector as an assembled sample. Baoshengda can review these component-level inputs for a custom FPC membrane switch. The buyer or PCB owner still controls the connector footprint, pin assignment, firmware mapping and final equipment validation.

Printed conductor changes: check ZIF contacts

In an announcement published 2026-10-06, Sun Chemical described conductive and dielectric ink variants that it plans to present at an October 21–22 printed-electronics event. The announcement is a materials-portfolio signal, not a test of this FPC keypad, its exposed fingers, or any ZIF connector. It provides no connector-contact finish, insertion-thickness or cycling data for the buyer's part. Do not transfer a printed-trace claim to a mating contact without a separate qualification record.

The buyer risk is accepting a revised printed circuit because its traces conduct on a flat sample while leaving the old tail-finger drawing and connector approval untouched. Ask the supplier to identify what actually changed: trace ink and cure process, dielectric stack, exposed mating surface, or all three. An ink substitution inside the circuit may leave the tail contact end unchanged, but that must be shown in the controlled drawings. A new contact material or finish opens a different approval decision with the connector owner.

For a quotation or change approval, send the old and proposed conductor/process records, contact-finger finish note, tail-end drawing, connector manufacturer and part number, insertion-thickness measurements, and assembled acceptance plan through the FPC membrane switch product page and Request Quote form. Baoshengda can review the component drawing and sample scope. The connector/PCB owner must confirm the mating specification, while the equipment owner sets system-level test conditions and pass limits.

Treat contact exposure and stiffener geometry as one stack

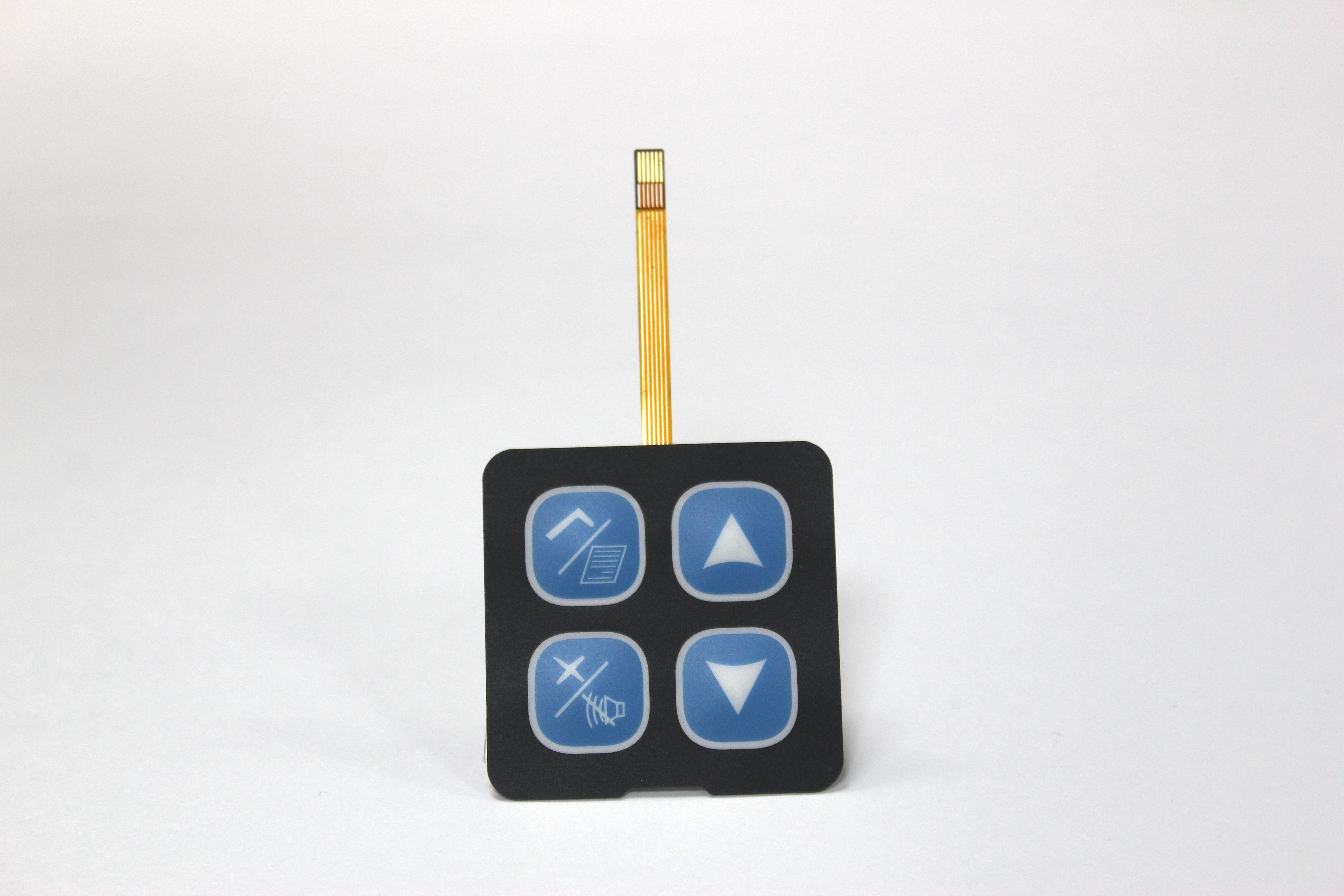

The exposed conductive fingers are the electrical surface. The stiffener gives the flexible tail enough body for insertion and for the connector latch to hold it. They share the same short length of tail, so their boundaries must be coordinated rather than dimensioned in separate notes.

Start by marking the connector entry edge and the intended insertion depth on the tail drawing. Show where the exposed fingers begin and end, where the reinforcement begins, and which surfaces contribute to finished thickness inside the connector. A stiffener that stops too far behind the contact area can leave the insertion end too soft. A stiffener that overlaps the wrong region can make the tail too thick or prevent the contact fingers from reaching the connector wipe zone.

Do not copy a nominal stiffener length from a previous keypad unless the connector and insertion direction are unchanged. Two ZIF connectors with the same pin count and pitch can use different contact locations, latch geometry and allowed insertion thickness.

Define the connector view before numbering contacts

Contact-side language becomes ambiguous when drawings use different views. "Contacts up" may refer to the loose tail on a bench, the assembled keypad viewed from the front, or the PCB connector viewed from above. Put a small installed-orientation sketch beside the tail detail.

The sketch should identify:

• keypad front and rear;
• tail exit direction;
• exposed contact side;
• PCB top side;
• connector opening and latch;
• Pin 1 at both the tail and connector.

Keep the mechanical contact numbering separate from the key-function table. First prove that Tail Contact 1 enters Connector Position 1 in the intended view. Then map that contact to a key row, column, LED or other circuit function. This order prevents an electrically correct table from being built on a mirrored mechanical drawing.

Check insertion thickness where the latch actually closes

The connector does not clamp a material name. It clamps the finished tail stack. That stack can include the FPC base, copper, coverlay or coating, exposed finish, adhesive and a local stiffener. Ask the connector owner for the permitted insertion-thickness range and measure the finished sample at the clamped zone, not at an unrelated bare section of tail.

A tail that is too thin may slide or lose stable pressure after vibration and service handling. A tail that is too thick may require force, damage the latch or fail to seat fully. If the sample only works while an operator holds it at an angle, the interface is not approved.

Also inspect the transition where the stiffened end returns to the flexible tail. That step should remain outside the connector mouth and away from the first installed bend. Putting the connector edge, stiffener step and bend on the same short area concentrates strain where the conductors need stable alignment.

Keep the first bend away from the insertion end

Compact housings often place the PCB close to the keypad. The tail then exits the panel, bends immediately and enters a ZIF connector with little service loop. That layout may fit in CAD but become difficult to assemble without pulling on the panel edge or twisting the contact end.

Review the installed route with the connector latch both open and closed. Leave a straight approach into the connector and enough free tail for the operator to align the contacts without forcing a diagonal entry. Define the bend direction and keep the first controlled bend beyond the reinforced insertion section.

The tradeoff is space versus serviceability. A shorter tail reduces loose material inside the housing, but it gives the assembler less room to open the latch, inspect seating and replace the keypad. Record the intended assembly sequence before cutting tail length.

Prove the interface on an assembled sample

A loose-tail continuity test cannot show whether the connector grips the correct area. Test the sample with the specified mating connector and, when possible, the intended housing or a representative fixture.

The approval record should include:

• a straight-on photograph of the fully seated tail before the latch closes;
• a second photograph after the latch closes;
• confirmation that the insertion mark reaches the planned position;
• visual confirmation that every contact finger is centered on its connector position;
• continuity results for every key and any LED or auxiliary line;
• a gentle service-loop movement check without intermittent response;
• the approved FPC, connector and PCB drawing revisions.

If the connector is unavailable during keypad sampling, label the interface provisional. Approving graphics and key feel does not approve the insertion stack. Hold production release until the actual connector fit is checked.

Send one controlled ZIF-tail page with the RFQ

A useful quotation package does not need a long connector report. It needs one controlled page that removes view and stack ambiguity. Include the connector manufacturer and part number, pin count and pitch, tail width, exposed-contact length, stiffener material and length, finished insertion thickness, contact side, Pin 1 definition and installed bend direction. Add the PCB-side connector view and state whether a mating fixture is available for samples.

When submitting the Request Quote, attach that page with the keypad artwork and key-to-pin table. Mark any connector value that is still provisional. The supplier can then separate tail-cutting and stiffener assumptions from confirmed dimensions, quote the intended construction, and return a sample that can be judged at the real interface rather than only on a desk.
