FSR Pressure Sensor Actuator and Contact Area Checks Before Sampling

For a single-zone FSR sample, define the force-dependent output and the actuator contact geometry together. One channel does not by itself provide a contact map. Compare samples with controlled actuator, support and readout conditions, and state the useful force range and tail route. Name the contact feature being evaluated so a changed fixture is not mistaken for a changed sensor.

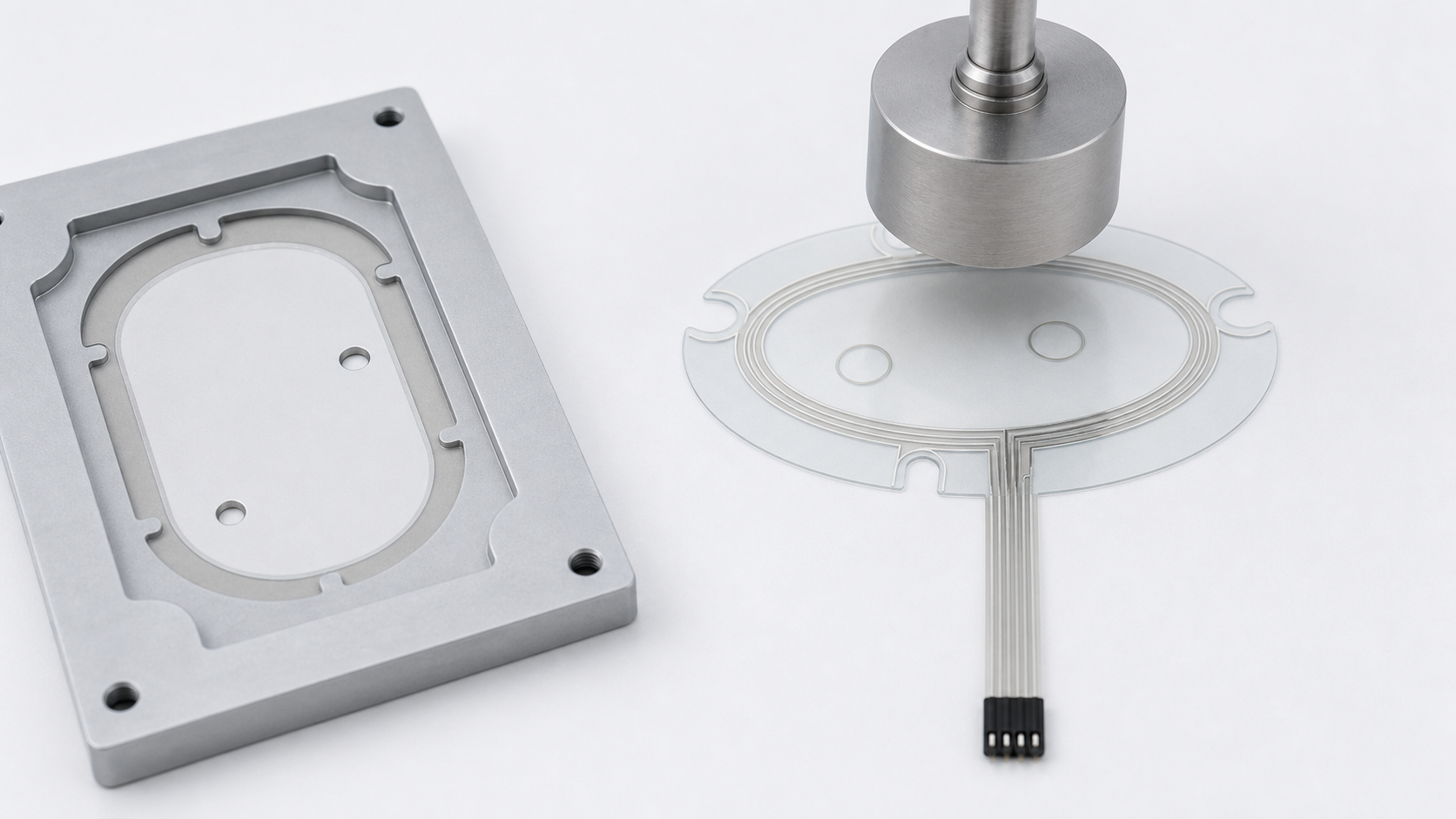

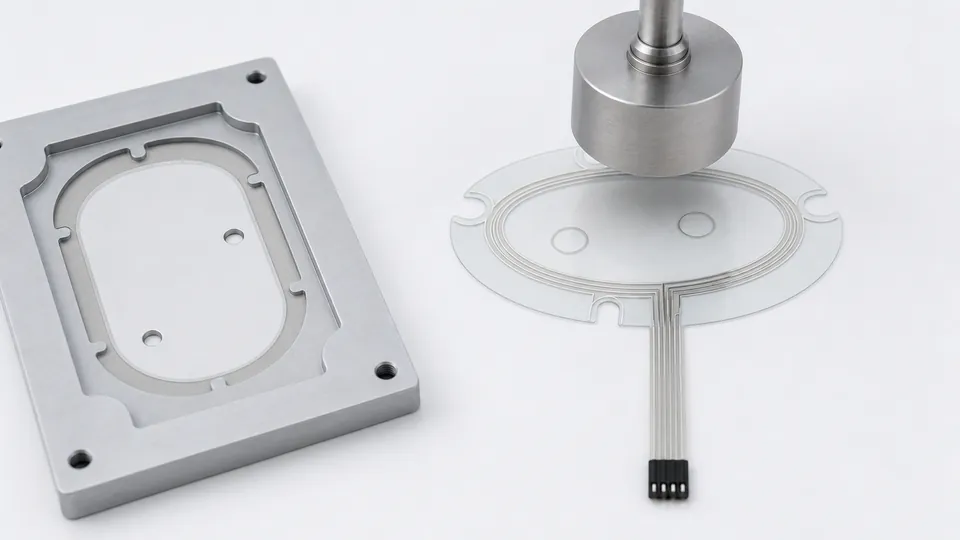

Equipment buyers and sourcing teams can use this guide to prepare an actuator or housing concept for a custom FSR pressure sensor review. The cover is an illustration of contact geometry, not a record of a force test, internal sensor construction or a customer assembly.

Does the task need one force channel or a contact map?

In its tactile-sensing account published on 2026-10-15, Pressure Profile Systems describes a glove that records distributed hand forces and a robotic sensing platform that measures contact location, area and force, among other signals. The company also discusses synchronizing touch data with video. This is a company-owned description of its sensing systems, not an independent test of a single-zone FSR or evidence that an ordinary film sensor provides the same outputs.

Define the actuator trial by the question it must answer: did a load cross a threshold, how did the force-dependent signal change, or where did a finger touch? Each question needs its own acceptance evidence. A single-zone electrical reading cannot independently identify both an unknown force and an unknown contact distribution. If the requirement is a contact map or slip detection, specify it before choosing the sample architecture; an outline drawing or a larger sensing area does not demonstrate that function.

For an actuator/contact-area trial, state whether the intended result is a threshold, relative response or force estimate under defined conditions. Record the number of sensing channels and the readout used. Keep spatial, shear or slip outputs as separate requirements needing an appropriate sensing system and validation, rather than treating them as properties established by the sensor's shape.

What should press the sensor?

Identify the part that touches the sensor and the support beneath it.

A flat plastic button, rubber dome, foam pad, metal pin, and molded actuator can produce different readings at the same applied force. Contact shape, material compliance and support change how the load reaches the active region. Use a mounted comparison to determine the direction and size of any response change; contact diameter alone is insufficient.

Confirm these details before the drawing is frozen:

• Actuator material, such as plastic, rubber, silicone, foam, or metal.
• Actuator end shape, such as flat, rounded, ribbed, or domed.
• Expected contact patch diameter or length and width.
• Whether the actuator moves vertically or slides slightly during use.
• Whether a spacer, overlay, adhesive, or housing wall sits between the actuator and sensor.

A common sample-stage failure is testing the bare FSR with a finger and then expecting the assembled product to show the same response. Finger testing is useful for a quick check, but it does not replace the real actuator geometry.

How large should the active contact area be?

Choose an active area that accommodates the actuator position and its tolerances while leaving room for screws, ribs, clips and sealing features. An enlarged active area is not a measurement of the contact patch. Keep the intended load away from the bonded border unless that loading condition has been evaluated.

Use this quick decision table during sample planning:

If the actuator can land off-center, leave enough active-area margin or add mechanical guidance. If the sensor must fit into a narrow housing, keep the sensing zone tight and control the actuator position more carefully.

What force range should be discussed before requesting a quote?

An FSR is useful when the project needs a pressure or force-dependent signal, not just an on/off switch. Describe the useful force window as well as the maximum force.

Send this information if available:

• Minimum force that should be detected.
• Normal working force during user operation or machine contact.
• Maximum force before the product should stop, alarm, or ignore extra pressure.
• Whether the product needs relative force change or approximate force estimation.
• Whether the sensor will be pressed once, held for a long time, or pressed repeatedly.

A sensitive stack may react earlier but can be more affected by assembly preload, foam recovery, or housing compression. A less sensitive stack may be steadier in the assembly but may miss light touches. The first sample should be built around the real useful range, then adjusted after bench data.

Make contact-area comparisons under controlled conditions

Interlink's older FSR integration guide, section 7 explains why actuator material, area, shape and placement affect a force-sensor response. It supports a repeatable setup method, not a specification for Baoshengda's custom sensors. Keep these conditions in the sample record:

• Actuator face and material, its measured or estimated contact patch, and its position relative to the active area.
• Applied force steps, loading direction, dwell and unloading sequence; identify any initial preload.
• The support plate and complete stack above and below the sensor.
• Readout circuit, supply and acquisition settings used for both samples.
• Sample identity, ambient conditions and the acceptance criterion being compared.

Change one defined feature at a time. If the trial compares two contact areas, keep the applied-force sequence and readout unchanged and label the two actuator conditions. If the trial changes the backing foam as well, record it as a combined stack comparison, not evidence that contact area alone caused the difference. A finger press can check that a signal exists; it does not establish the repeatability of the installed assembly.

What tail and connector risks should be checked?

Tail routing can fail even when the sensing area works well. The tail may leave the active area through a narrow slot, bend under a cover, or sit near a moving part. If the tail bends too sharply, the trace and insulation become the weak point.

Check these items on the drawing:

• Tail exit direction and whether it conflicts with screws, clips, hinges, or gasket lines.
• Bend radius and whether the bend happens near the active sensor body.
• Connector pitch, pin count, exposed contact direction, and mating board position.
• Need for reinforcement at the tail end.
• Whether adhesive should stop before the bend zone.

For early samples, mark the installed tail path in a photo or simple sketch so the supplier can check it against the flat sensor outline.

What should buyers send for an FSR sample RFQ?

First contact can start with the information already available. Before agreeing on a comparable sample build, work through these details with the supplier:

• Sensor outline drawing with active area, tail, connector, holes, and keep-out areas.
• Housing or fixture drawing showing the actuator position and nearby mechanical features.
• Actuator material, shape, contact patch, travel, and expected tolerance.
• Target force range and how the signal will be read by the circuit.
• Stack-up above and below the sensor, including adhesive, spacer, foam, rubber, overlay, and support plate.
• Expected environment, such as heat, humidity, cleaning, vibration, or long press time.
• Sample quantity, test method, and what data will be accepted before the next revision.

For an initial FSR actuator and sample review, share an existing photo or sketch if available and explain what presses the sensor. Describe the intended use, then give an approximate quantity or the question still open, such as whether a force threshold or a contact map is needed. Baoshengda can review the proposed film geometry, tail and sample inputs; the readout, mounted response and any spatial-sensing requirement still need project-specific confirmation. A complete production drawing is not needed to start that discussion.
