FSR Sensor vs Load Cell for Robot Gripper Contact Detection

Choose the sensing task before choosing a gripper sensor. A thin FSR layer can be evaluated for contact presence, a defined relative threshold or zone comparison when the mounted actuator and readout give repeatable results. If the controller needs force in calibrated units or a defined mechanical load path for force control, evaluate a load cell. Neither component alone establishes a safety function. State the required output and acceptance method in the first RFQ.

The International Federation of Robotics’ World Robotics 2025 service robots release reported professional service-robot growth in 2024. Shipment totals do not choose a gripper sensor. Tekscan’s sensor-integration guidance separates mechanical loading from electrical readout and calibration checks for its own FlexiForce products. Those principles are useful questions for a custom gripper sample, but the guide does not provide performance limits for a Baoshengda FSR. Set the actuator, circuit and acceptance limits for the actual installed part.

NVIDIA's robotics platform announcement dated 2026-10-21 describes reference humanoid hands with force control and tactile sensing, with the platform scheduled for availability in early 2027. It does not identify a Baoshengda FSR or publish an acceptance limit for a custom gripper sensor. The announcement describes the reference platform; it is not evidence that a particular thin-film contact channel can replace calibrated force measurement.

For a gripper buyer, the distinction affects how quotations are compared. A contact decision and a force value answer different questions, even if both are described as tactile feedback. Specify the required output before comparing price or thickness. A supplier demonstration needs to show the requested decision under the agreed contact conditions; a force-measurement offer needs its own installed reference and calibration evidence.

Baoshengda's FSR pressure sensor work fits the component-level side of that decision. It can support custom sensing shapes, printed conductive traces, cable or tail routing, connector planning and sample review. It does not replace the robot maker's safety logic, actuator design or calibration model.

When an FSR is enough for gripper contact

Consider an FSR when the gripper needs to detect contact, seating or a relative change at a defined zone. Its thin film can follow a custom outline under a pad, fingertip cover or molded contact surface. Agree on the actuator and the threshold test before assuming that a particular outline will work in the assembled finger.

The film can save space at the contact surface. Its raw output is not a force specification. Loading area, preload, pad hardness, contact location, cable/connector condition and readout circuit can change the signal. Compare repeated contact and release cycles in the mounted finger, using the same object, actuator and circuit. Record the unloaded baseline and threshold margin; the robot maker decides whether the resulting variation is acceptable.

For a gripper sample, define what the software really needs:

• binary contact detection;
• relative light, medium or firm threshold;
• left-right contact comparison;
• a signal-change alert only if the OEM validates it against actual slip events;
• repeated pick confirmation rather than calibrated force control.

An FSR sample is a reasonable first comparison for these tasks. A single signal change does not prove that an object slipped; motion and contact geometry can change the reading as well.

When a load cell should stay in the design

Evaluate a load cell when the controller needs calibrated force as an input to its process or motion-control decision. A thin FSR layer can still supply separate contact-zone information, but should not be assigned the calibrated-force task without a tested measurement model. Mechanical overload protection and safety functions need system-level design and validation beyond the sensor choice.

A thin-film sample may meet a contact threshold without meeting the required calibrated-force performance after assembly. The first bench test may look promising, but the installed signal can change when the foam pad shifts, the finger cover is tightened, the cable is bent, or the object touches only one edge of the active area.

Specify a load-cell path when acceptance depends on calibrated force values, a defined load path or repeatability across the required fixtures. A load cell still needs the correct mounting, electronics and calibration. System-level safety or regulatory evidence requires the robot maker’s own validation; neither sensor type provides it by its name alone.

Actuator shape changes the FSR result

The actuator is the part that presses on the FSR active zone. In a robot gripper, it may be a rubber pad, foam layer, molded finger insert, metal button, small pin, flexible skin or the object itself. Its geometry and stiffness affect how force reaches the sensing area.

A small hard point can overload a small area and make the reading jump. A wide soft pad can spread pressure and make light contact harder to detect. An off-center actuator can make two samples look inconsistent even when the sensor printing is acceptable. If the gripper has curved fingers, the sensor may also see contact on one edge before the object is fully seated.

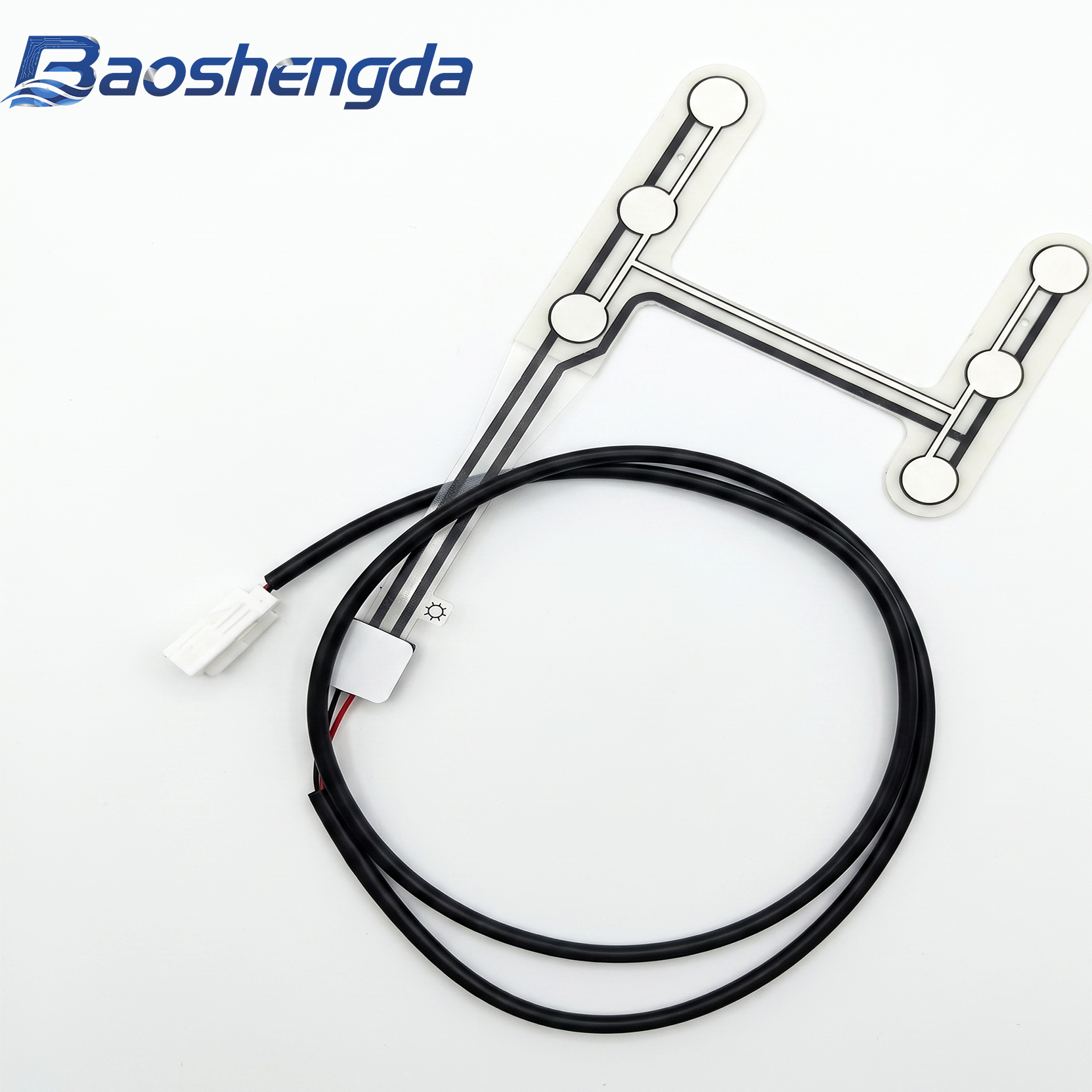

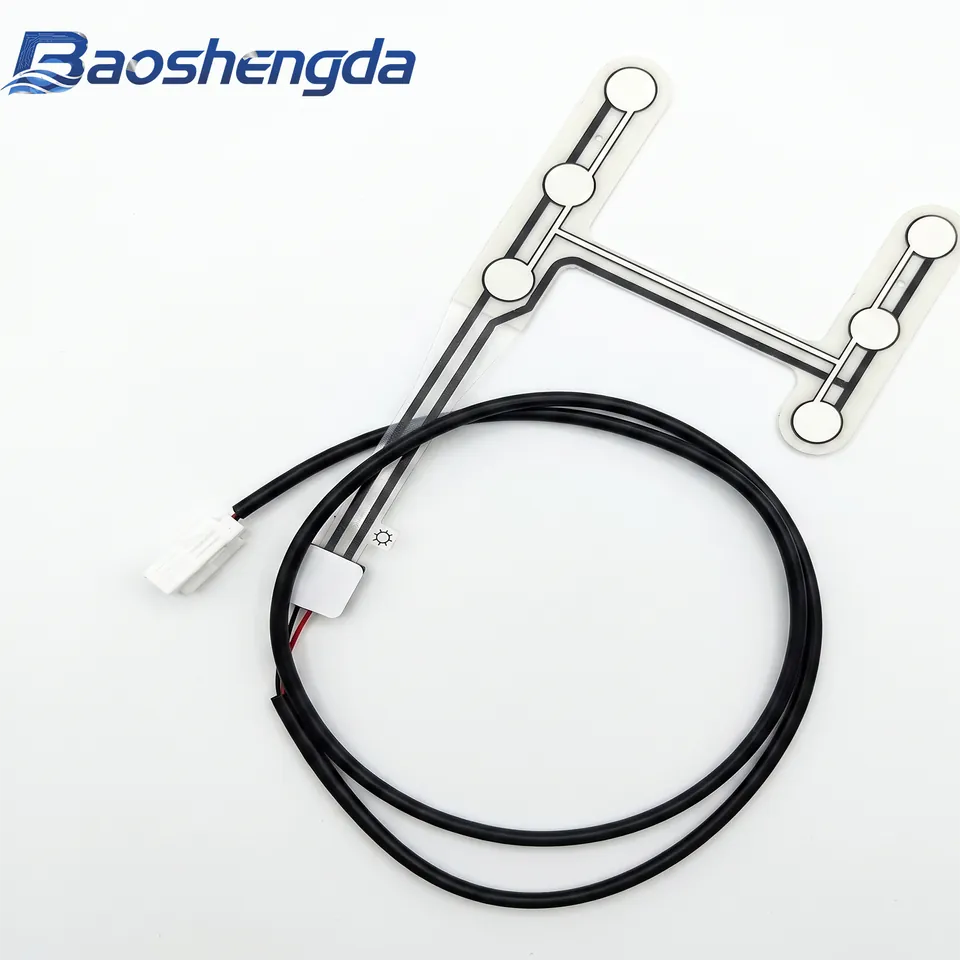

Before asking for samples, mark the active area on the drawing and send the actuator details with it. Include pad material, thickness, contact area, expected preload, maximum travel and the sensor position relative to the gripping surface. For multiple contact zones, mark their spacing and the channel used for each decision. The existing article image shows a real multi-zone film and connector; it is not an installed gripper test or a calibrated force result.

Tail route and connector choice belong in the same RFQ

Include the tail or cable route in the component definition. Its routing affects whether the sensor remains serviceable inside the gripper finger. A moving gripper may bend, twist, close against stops, see vibration or require fast replacement during service. If the cable exits through a tight corner, the electrical signal may fail before the sensing film fails.

For a useful FSR RFQ, define:

• cable or printed tail exit side;
• bend radius and moving hinge clearance;
• connector type, pitch and locking need;
• stiffener length and orientation;
• strain relief location;
• whether the tail must pass through a sealed finger or open service cover;
• expected cycle count or service-replacement requirement.

This information helps separate a sensor-shape quote from a workable installed part. It also prevents a late redesign where the sensing zone is correct, but the connector cannot be reached after assembly.

Compare the required output and installed evidence

Use the table to identify the missing evidence, not to rank the parts. A design can use a load cell in the mechanism for force control and an FSR at the fingertip for contact-zone information, provided the OEM defines which signal governs each decision.

Keep contact decisions and force errors in separate comparison columns

Use one comparison record for the actual gripper requirement. Identify the sensor construction, pad, backing, preload, readout circuit, object and mounting revision before recording either channel. Define the physical contact or released condition independently of the FSR reading; otherwise the proposed threshold is being used to judge itself.

Record contact classification separately from force error. Do not rank a binary contact output against a force value by comparing raw voltage, resistance or a single plotted peak. The OEM defines the acceptable missed-contact and false-contact behavior. When force measurement is required, its responsible engineer also defines the reference method, applicable uncertainty and acceptable error; this article supplies no universal acceptance values.

A load cell used as a test reference does not have to become a permanent component in the chosen architecture. Show where it sits in the test arrangement. Adding it in series can change the mechanical stack, compliance and force path, so an instrumented fixture and the intended finger are not automatically equivalent. Identify those changes and agree which comparisons remain valid before transferring a result to the installed design.

Ask each offer to identify the passive sensing element, readout electronics, fixture, measurement record and controller evaluation included in its scope. A component supplier can report agreed sample behavior without owning the robot's final grasp or motion decision. The reference arrangement, separate acceptance columns and remaining buyer-run work should stay attached to the quotation.

Test the contact decision on the mounted finger

A contact threshold needs to separate the unloaded or preloaded state from the intended contact state under the conditions the gripper will encounter. Define the object set and contact positions before comparing sensors. A hard, flat reference object may load the film differently from a curved, compliant or off-center workpiece.

For an FSR trial, agree which of the following checks are relevant:

• Record the baseline with the finger assembled and its specified preload applied. State whether the controller resets or adjusts that baseline.
• Repeat contact and release at the required zones, using the intended pad and object surfaces. Record missed contacts and false contact decisions against an agreed threshold rule.
• If the grasp includes a hold period, record the decision throughout that period and the recovery after release. Do not infer hold behavior from a brief tap.
• Check whether normal cable movement, pad repositioning or the agreed change in contact location alters the decision. Distinguish a connection fault from a sensing response.

These are proposed review conditions, not results from a Baoshengda gripper test. The robot maker must define acceptable variation and decide whether the chosen signal meets the application. A contact demonstration does not establish calibrated force, reliable slip detection or a safety function.

For force estimates, the FSR calibration and force-range checks explain the separate fixture, circuit and reference-load questions. Confirm those requirements before treating an FSR reading as a load-cell substitute.

What to send before requesting FSR samples

An initial inquiry can start with an existing finger or pad photo, a sketch or drawing if available, the intended contact or force output, and an approximate quantity or an unresolved measurement question. Complete production drawings are not required for that first discussion. For a conditional sample quotation, develop the following inputs as they become available. Include the active-zone size, actuator material, expected object surface, preload range, readout voltage or circuit plan, tail route, connector preference, sample quantity and annual estimate. Add the required decision output: contact threshold, zone comparison or calibrated force. For an FSR trial, include the mounted baseline, repeated contact/release fixture, object set and acceptable threshold margin. If a load cell is already present, explain which extra contact-zone signal the FSR would provide.

For Baoshengda review, send photos or sketches showing where the sensor will sit after assembly. Mark the contact point, the cable exit and any moving cover or hinge. If the project is still early, send two options: one for a single active zone and one for multiple zones. Use the Request Quote page to discuss the available geometry and the missing comparison evidence.

Ask which sample records can be supplied for the proposed film and agree who provides the contact fixture, readout and controller evaluation. The component quote should name those boundaries. Include any threshold or hold requirement already known; mark the rest as open, so an early inquiry can proceed without implying that the gripper has been validated.
