Long Flexible Pressure Strip: Separate Contact Sensing From Recovery Before Prototyping

For a long flexible pressure strip, define the event to detect before ordering a prototype: sustained contact, a changing force, or separate contacts at different positions. Specify the active areas, load path, support, tail and measurement circuit together. Check unloaded, held-load and released response in the mounted assembly. Mechanical shape recovery needs its own acceptance test; it does not establish that the electrical reading has returned to baseline.

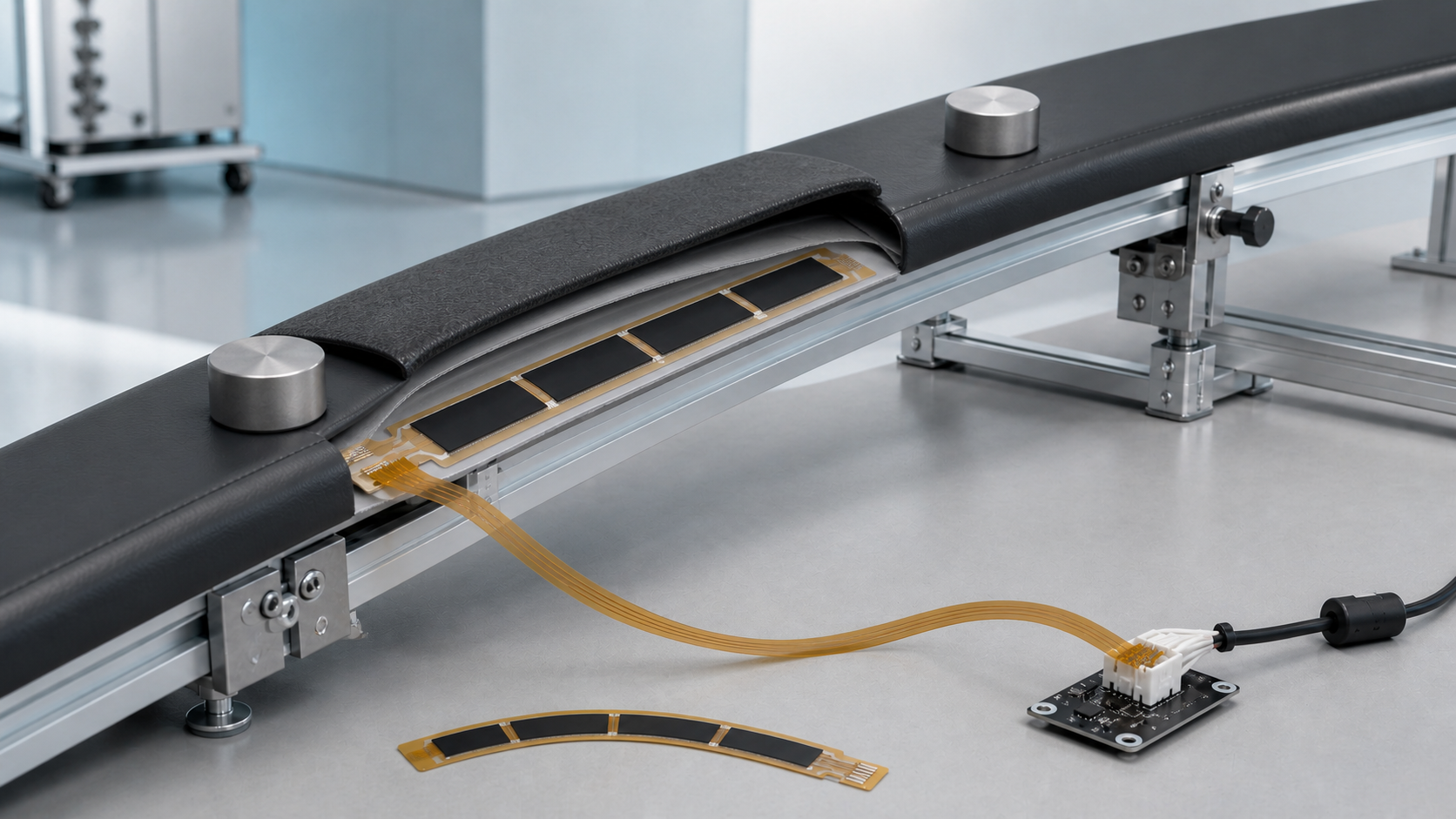

The cover is a generated engineering illustration of a possible multi-zone layout. It is not a photograph of a customer installation, a supplied controller or a completed Baoshengda test. The four zones shown do not specify the channel count for your project.

A Scientific Reports study published on August 28, 2026, examined a PVDF/SMPU/BTO composite designed to balance piezoelectric output and shape recovery. The researchers found a real tradeoff: compositions rich in SMPU favored recovery, while PVDF/BTO-rich formulations favored electrical output. That research concerns a multifunctional composite, not a commercial FSR specification. Its useful sourcing lesson is narrower: electrical response and mechanical recovery are different design objectives, so buyers should not hide both inside one vague prototype requirement.

Choose the sensing principle before choosing the strip length

A long strip can be built around different physical effects. An FSR-type element changes resistance under an applied load and can support contact or force-threshold detection when the actuator, support and circuit are defined. A piezoelectric element responds strongly to changing mechanical input but is generally not a substitute for a steady-contact reading. A capacitive construction has another set of electrode, shielding and controller requirements. A simple membrane contact can provide a discrete on-off state without trying to estimate force.

Start with the event the controller must recognize. If the requirement is “detect that an object remains on the rail,” sustained contact behavior matters. If the requirement is “detect a tap or impact,” a dynamic-response principle may fit. For a strip that must follow a curved support and return after service bending, recovery is a mechanical acceptance item. For an alarm function, define whether the alarm is triggered by one zone, several zones, duration, rate of change or a combination in controller logic.

Do not ask the component supplier to infer the sensing principle from words such as flexible, pressure, smart or self-recovering. Those words describe goals, not an electrical interface.

Separate contact, recovery and alarm decisions

The prototype plan should give each decision its own evidence. Combining them in one pass makes it difficult to explain a failure.

This separation also changes quotation quality. A supplier can price a defined flexible sensor layout and sample sequence. It cannot quote an unknown combination of sensing material, mechanical recovery, controller algorithm and end-product alarm performance as if they were one component feature.

Freeze the active-zone map and mechanical load path

Strip length is not enough. A strip with separately read active zones needs a different circuit definition from one continuous sensing area. Overall length alone does not show whether separate contact locations can be distinguished. Show each active zone, inactive gap, trace corridor, tail exit and keepout on the drawing. Give zones stable IDs that also appear in the connector pinout and sample log.

Next, define how force reaches the sensing layer. Record the actuator or contact surface, its width and hardness, the load direction, the support under the sensor and any elastomer or foam used to spread the load. A narrow hard puck can create a very different response from a broad padded rail. A gap below one zone can cause bending rather than compression. A cover layer can distribute one contact across two zones.

For a curved installation, state the normal support radius and the smallest radius expected during assembly or service. Mark the bend region and keep the active zone, printed trace transition and stiffened termination away from uncontrolled sharp folds. If the strip crosses a joint, decide whether the joint carries load, allows sliding or repeatedly flexes the sensor.

Approve the full mounted stack, not only the bare film on a flat test plate.

Decide whether separate zones need separate readings

Draw the electrical connections as well as the visible zone outlines. Several pads connected to the same measurement pair can contribute to one combined signal; separate-looking pads do not by themselves provide independent position readings. If the controller must distinguish contacts, specify how each zone is read, including any common conductor, channel selection or multiplexing. Confirm the feasible circuit with the supplier before fixing the connector pin count.

Give every zone the same ID in the drawing, pin table and test record. Ask the equipment engineer to define what should happen when two neighboring zones are loaded together. Test the actual cover and support because they can spread one applied load across more than one zone. Do not describe a strip as a pressure map unless its readout and mounted performance have been established.

Control baseline return after assembly and bending

Mechanical recovery does not automatically mean the electrical baseline returns to its original value. Adhesive stress, foam compression, cover tension, trace strain and tail pull can all change the mounted response.

Record an initial baseline with the strip installed and unloaded. Apply the specified loads for the agreed dwell time, remove them, and record the response after a defined recovery interval. Repeat the test after assembly bending and after a controlled cycle sequence. The acceptance rule might limit baseline shift, zone-to-zone spread, hysteresis or time to return within a window. The correct limits depend on the application and circuit; they should not be copied from an unrelated material paper.

Also test realistic off-center contact. For a multi-zone strip, press the center of each zone, the boundary between zones and a point near the trace corridor. This reveals whether the load-spreading layer causes cross-zone response or whether the support produces a dead area.

Temperature and humidity can affect polymer layers, adhesive, foam and electronics. If the final equipment operates outside a normal indoor range, specify the conditioning points and recovery time. Do not call a sample environmentally approved when it was tested only at an uncontrolled bench condition.

Treat the tail and connector as part of the sensing system

Long flexible sensors often fail at the transition from the active strip to the tail, not in the center of an active zone. The drawing should control tail length, conductor side, exit direction, first-bend keepout, stiffener, exposed-contact geometry or connector, mating part and strain relief. The installed route must avoid sharp enclosure edges, moving joints and service pinch points.

Check continuity before mounting, after mounting, after the enclosure or padding is closed, and after the bending sequence. If the tail plugs into a ZIF or locking connector, document the insertion direction, contact side and exposed-contact length. If a cable is attached, show how the transition is supported and how pull force is kept away from printed conductors.

Agree which sample records can be supplied, then identify the film revision, circuit revision, tail or cable revision, connector and fixture in those records. A note saying "sensor passed" leaves the evidence unclear if the tail geometry changes before production.

Define the component and controller boundary

A flexible-sensor supplier can review the active-area drawing, film stack, printed circuit, adhesive geometry, tail, stiffener, connector and agreed component test. Ask which continuity, resistance or contact-state records can be supplied under the agreed fixtures and loads. A mounted-fit review also needs representative hardware and agreed acceptance conditions; confirm its scope rather than assuming it is included in the component quotation.

The supplier does not choose the alarm threshold, create safety logic, interpret a medical condition, validate the complete rehabilitation device, approve a protective function or guarantee calibrated force without a released calibration method and tolerance agreement. It also cannot prove long-term equipment recovery from a short loose-film bend test.

Keep safety-related and clinical decisions outside an ordinary component quotation unless they are supported by the correct system owner, applicable standards and controlled validation. The cover, sensor and sample can support an engineering decision without implying completed-device approval.

Agree the hold-and-release record before sampling

A short press shows little about sustained-contact behavior. For the intended load and contact area, agree a hold duration, reading intervals and a release observation window. Use the same fixture and measurement circuit for comparison. Record preload, mounting condition and any warm-up or conditioning so that a change in setup is not mistaken for sensor drift.

This is a suggested record structure, not measured data or a promise that every prototype includes a standard report. Agree the required records and acceptance criteria before the sample order. The existing FSR engineering PDF and the custom FSR pressure sensor page describe the component scope; they do not establish calibrated force accuracy, an included controller or a safety function for a long strip.

Build a staged sample approval plan

Use the early stages to resolve the zone map, load path and connector before committing to endurance testing.

**Stage 1: flat electrical coupon.** Confirm zone IDs, basic unloaded and loaded response, circuit compatibility, tail contacts and connector orientation. Use the actual actuator size and support where possible.

**Stage 2: curved mechanical fixture.** Install the strip on the stated radius with the intended backing, adhesive and load-spreading layer. Repeat center, boundary, dwell and release tests. Record baseline return.

**Stage 3: assembly and routing.** Close the real cover or padding, route the complete tail, mate the connector and exercise every service movement. Repeat continuity and critical zone tests.

**Stage 4: controller integration.** Apply the released filtering, threshold, persistence and fault rules. Test a short press, sustained contact, adjacent-zone contact, disconnected channel, stuck input and recovery after the load is removed.

**Stage 5: bounded durability.** Run the agreed bend, press and environmental cycles. Inspect adhesive edges, active zones, trace transitions, tail and connector before repeating the electrical acceptance points.

Resolve the zone map and load path before endurance testing, so a failure can be traced to a defined construction and setup.

Send a drawing and RFQ package the supplier can review

For a custom FSR pressure sensor with controlled active zones, load path, tail and connector, send one revision-controlled package containing:

• final-use environment and the exact event the controller must detect;
• selected sensing principle and whether sustained contact, force trend or dynamic change matters;
• overall strip outline, active-zone IDs, inactive gaps, trace corridor and keepouts;
• actuator width, hardness, load direction, expected range, dwell time and release interval;
• backing, cover, adhesive and load-spreading layers with mounted support radius;
• normal bend radius, service bend limit, cycle count and baseline-return rule;
• circuit, supply or measurement method, channel assignment, connector pinout and mating part;
• threshold, filtering, persistence, fault and alarm logic owned by the buyer or system integrator;
• flat, curved, assembled, controller and durability sample stages with acceptance records;
• prototype quantity, expected production range, traceability, packaging and change-notification needs.

Submit that package through the Request Quote page. The response can then address a defined flexible pressure-sensing component and evidence plan without treating material recovery, contact detection and alarm behavior as one unsupported promise.
