ZIF Connector FPC Membrane Switch Quote: What Buyers Should Send

Start a ZIF-tail quotation with the connector part number or clear photos if that is all you have, the intended use, and an approximate quantity or an unresolved question. A preliminary quote can name assumptions. Before a mating sample is released, confirm the connector drawing, finished tail thickness, contact side, pin assignment and installed route. A drawing of the keypad face alone cannot confirm this interface.

October 2026 guidance: a connector name does not prove fit

In its 2026-10-14 comparison of FPC and printed PET circuits, Higoal treats a circuit change as a connector-interface review. Its guide explains that a ZIF or FPC connector name does not establish compatibility with any flexible tail. This is current supplier-owned design guidance, not an independent test, a Baoshengda customer project or evidence of market growth.

The sourcing risk is an assumption becoming a sample requirement without anyone noticing. If a buyer changes the circuit construction but carries over an old tail description, the quoted part may retain the right outline while its mating stack or contact face no longer matches the selected socket. An unchanged front panel does not resolve that uncertainty.

For this RFQ, carry one interface record from quotation into sampling. Name the actual connector, its drawing revision, the finished mating section and the contact-side view. Mark unknowns as provisional, with an owner for confirmation. That keeps a price estimate separate from approval to build a tail around unverified dimensions.

A first conversation can establish which of those details are available and which need a drawing or sample check. Quote against stated assumptions now, then confirm the physical mating evidence before committing the sample construction.

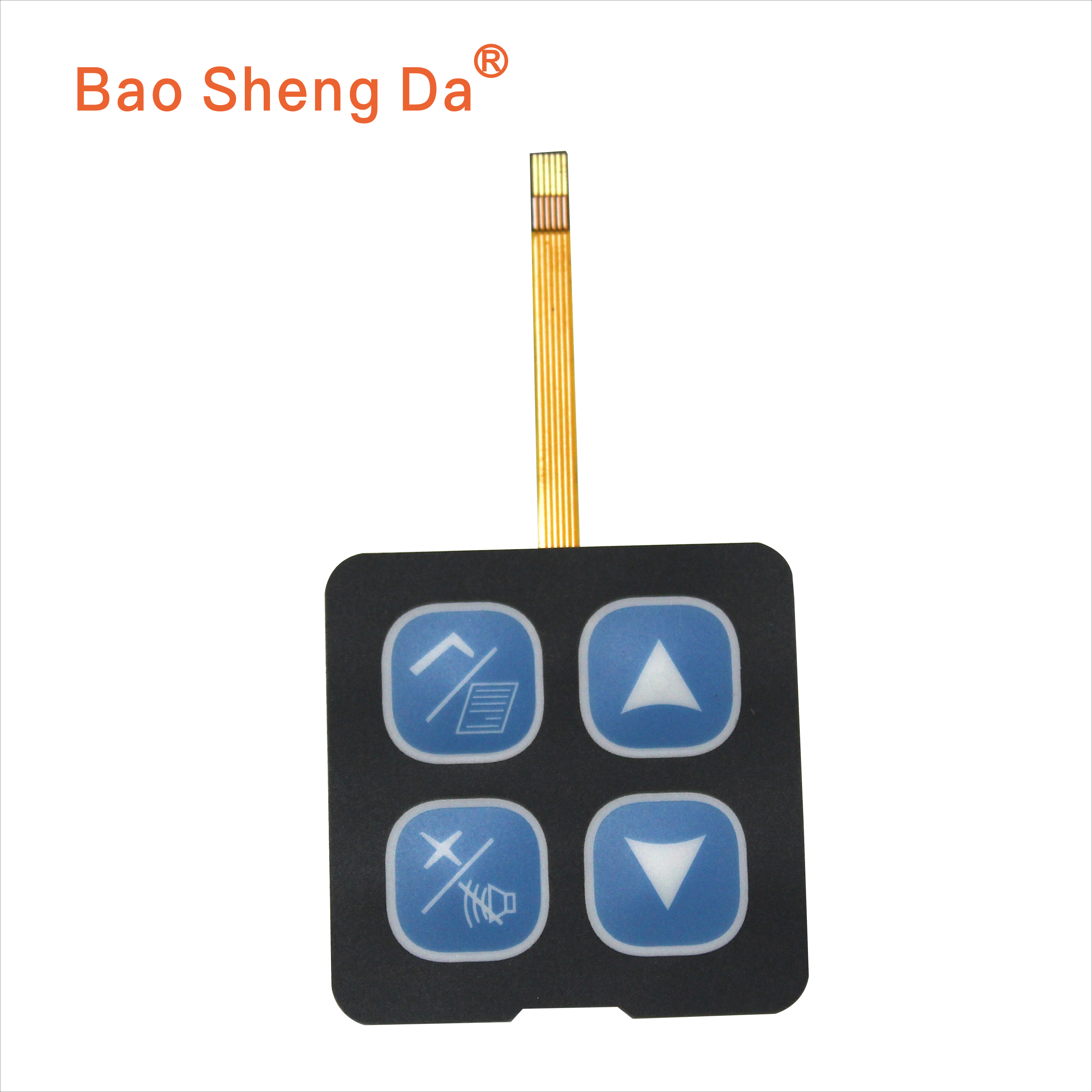

Baoshengda's FPC membrane switch component review can address the keypad, tail construction and sample evidence. The equipment maker controls the PCB connector and installed interface. The photo shows a complete keypad and its exposed tail contacts; it does not show a mating socket or measure the tail stack.

Keep provisional and confirmed inputs separate

Use the connector manufacturer's exact part number and drawing revision when known. Record the viewing direction for contact side and pin one, rather than relying on an unqualified note such as “contacts up.” A tail can change orientation along its installed route.

If the socket is undecided, send a board photo or space sketch and label the proposed interface as provisional. An old sample is useful for comparison, but a similar-looking replacement is not proof of the current connector requirement. Do not infer pitch or layer thickness from an unscaled photograph.

Specify the finished mating section, not the stiffener alone

The connector receives the finished tail. A stiffener thickness on its own does not describe the entire section that enters the socket. Show which circuit, contact and reinforcement layers extend into that section, and reference the approved construction drawing. The stiffener's length and end position also need to leave the intended bend and housing clear.

As engineering background, the Hirose FH52 documentation specifies its applicable FPC/FFC thickness separately from its recommended construction drawings. That is a connector-family example of the information to check, not a universal thickness, a prescribed connector for this keypad or a Baoshengda tolerance. Apply the drawing for the part actually selected.

Record the tail width, contact pitch and position count with the exposed contact geometry, specified finish and finished mating section. Keep the contact face and pin-one view on the same drawing. A gold-colored contact in a product photo does not verify its finish or dimensional acceptance.

Show the route from panel to PCB

Mark the panel exit, housing slot, first supported bend, connector position and any service movement. Include nearby gasket edges, screw bosses or covers that could press on the tail. Use the bend requirement for the actual flex construction; this page does not assign a generic minimum radius or service life.

Check the assembly sequence as well as the flat drawing. If the panel is bonded first, can the installer still align the tail and operate the latch? If the connection is made first, can panel placement pull or twist the tail? Keep insertion access and latch movement available in the representative housing.

A one-time installation bend and a tail that moves during service require different evidence. State the expected motion and review it with the circuit construction rather than assuming that every flexible tail can tolerate repeated folding.

Make the sample prove the agreed interface

Use the intended connector and identify it in the sample record. Inspect insertion and locking using that connector's handling instructions. Do not force a mismatched tail into a socket to obtain a passing photograph. A successful latch movement alone does not verify electrical mapping.

Check continuity and pin assignment in the connected state, then inspect the installed tail route and housing closure. Keep the approved artwork, key function and tactile requirements in the same sample review. Where the design includes indicators or other circuits, include those specified functions without assuming that every keypad has them.

Record the sample revision, connector identity, fixture or housing condition, measured observations, agreed acceptance criteria and remaining issues. If the board connector, contact face or mating stack changes, review the affected interface again. A bench check with a different connector does not close the original fit question.

Send what is available, then close the open items

For an initial ZIF-tail quotation or sample-fit question, send an existing panel or connector photo, or a drawing if available, with the intended use and an approximate quantity or the question you need answered. You do not need a complete production drawing set to start the conversation.

As the design develops, add the circuit and pinout drawing, selected connector information, exposed-contact requirement, finished mating section, stiffener details and housing route. Identify missing values as open rather than filling them with guesses. The quotation can then state which assumptions affect price or sample preparation.

If two connector or tail-route options remain under review, label each option and its unresolved fit question. Agree which one the next sample will represent before release.

The earlier May 2026 North American PCB report remains historical industry background. Its aggregate PCB figures do not specify this connector, verify a tail construction or establish demand for the quoted keypad. Use the selected connector drawing and sample evidence for the mating decision.
