Custom Membrane Switch LED RFQ: Map Every Indicator to a Tail Pin

For an LED membrane switch RFQ, connect each visible indicator window to its LED reference, polarity or common rail, tail pin and operating state. Record the proposed circuit construction and the driver conditions used to test it. A correct-looking overlay and a correct pin table still leave a question: will the intended indicators work together through the actual supply and return paths?

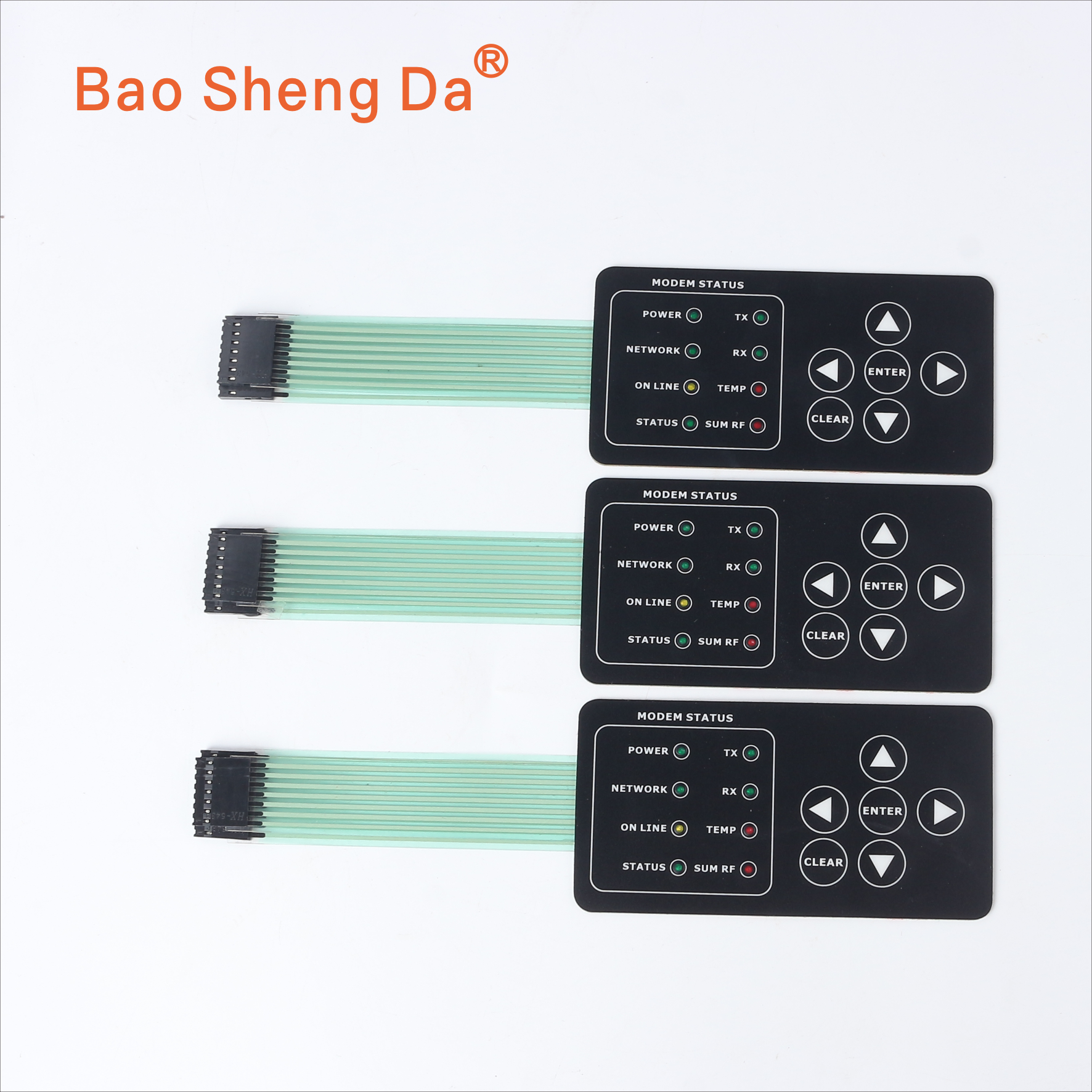

Start with the user-facing indicator map, then agree the electrical table and mechanical stack for the sample. Baoshengda can review these component-level inputs for a custom membrane switch with printed circuits, key zones, LEDs, flexible tails and connectors. The buyer or PCB owner still defines the driver circuit, supply limits, firmware behavior and final equipment acceptance.

Give every indicator one stable identity

Artwork labels are not enough for circuit control. A legend may change between language versions while the electrical function remains the same. Assign each indicator a stable reference such as LED1, LED2 and LED3, then use that reference in the artwork drawing, circuit diagram, pin table and test record.

For each reference, define the visible function, requested color, on/off behavior and whether the light is steady, flashing or controlled by a separate dimming method. If one window can show two colors, state whether it uses two LED devices, one multicolor device or another approved construction. Do not let the supplier infer this from a colored artwork file.

The failure mode is easy to miss at quotation. Two drawings can show three colored circles in the correct positions, yet the circuit revision may swap LED2 and LED3. The sample then lights the wrong status window even though the front print and keypad functions appear normal.

Put LED polarity and key contacts in one pin table

A membrane keypad matrix and its indicators can share the same tail, but they are not the same electrical load. The pin table should separate key rows and columns from LED lines. Show each LED anode and cathode, or show the approved common-anode, common-cathode or shared-return arrangement. Mark the connector view and Pin 1 so the table cannot be mirrored during PCB integration.

Include these fields on one controlled page:

• indicator reference and front-panel function;
• LED color or approved color range;
• anode, cathode and any shared rail;
• tail contact number and connector position;
• key-matrix row and column contacts in a separate block;
• connector part number, mating direction and Pin 1 view;
• driver ownership and any provisional electrical value.

Do not ask a membrane switch sample to prove a driver condition that has not been defined. If forward current, PWM method, series resistance or supply limit remains a PCB decision, mark it as buyer-controlled and provide the test fixture condition used for sample approval.

Specify the circuit behind the LED pin map

In a supplier guide published on 2026-10-14, Higoal compares printed conductive-ink PET circuits with copper flexible circuits. Its discussion covers conductor resistance and LED attachment: suitable printed PET designs can use conductive adhesive, while a suitable polyimide copper-flex stack can support soldered components. These are construction options to qualify, not a current rating or an assembly approval for a particular panel.

Window positions and pin numbers alone leave the conductor construction unspecified. The guide also distinguishes conductor losses from the limits of contacts, connectors and other parts. Changing the circuit construction requires review even when the front artwork stays the same. A copper circuit should not be assumed compatible with every soldering process.

Add the proposed conductor construction and LED attachment method to the control sheet, marking an undecided choice as provisional. Have the circuit owner identify the outgoing and return paths, including any common rail, and the LED combinations allowed during operation. The powered sample record should state which construction and load condition it actually checked.

Dimension the light center from the panel datum

The optical window, LED body and circuit pad need a common mechanical reference. Dimension each light center from the same panel datums used for the keypad outline and housing location. Avoid a chain of dimensions from one indicator to the next. A small error repeated across the chain can place the final LED close to the printed border or outside the housing light well.

Show the indicator window size separately from the LED or light-guide feature beneath it. A larger printed window does not correct an off-center light source. If the housing has a light pipe, bezel opening or internal boss, add its center and clearance to the assembly drawing. The useful check is the assembled light path, not a loose circuit held under the overlay.

There is also a height tradeoff. A discrete LED, spacer opening, adhesive stack and embossed key field can compete for thickness inside a thin panel. If the LED area sits too high, the overlay may show a bump or receive unintended pressure. If it sits too low or far from the window, the visible spot may be weak or uneven. Define the intended construction and inspect the mounted sample before freezing the spacer and adhesive die lines.

Separate indicator windows from tactile key zones

An indicator can sit close to a key, but it should not be mistaken for the actuation center. The artwork needs to make the status field and the operator input field visually distinct. The mechanical drawing should also prevent a metal dome, spacer vent or key emboss from overlapping the LED pocket.

Review the panel at three states: unpowered, powered in normal room light and powered in the darkest expected operating condition. Check whether an unlit window still reads as a status element, whether a lit indicator bleeds into a neighboring legend, and whether pressing the nearest key changes the light appearance. This sample review belongs to the specific artwork, spacer and housing stack. A bare LED brightness check cannot replace it.

If dead-front artwork is required, send an approved unpowered appearance reference and a powered target for each color. Do not promise an exact visual match from a screen image alone. Ink density, diffuser construction, LED distance and viewing angle all affect the final result.

Approve the tail and connector with every function active

A continuity test can confirm the keys while leaving the indicators untested. Build a sample fixture that operates every key contact and every LED line through the specified connector. The fixture should use the approved connector orientation and the same pin map sent with the RFQ.

Record at least:

• every key response by key reference;
• every indicator response by LED reference;
• correct color and physical window location;
• polarity or common-rail behavior;
• no unintended indicator response during key actuation;
• connector seating and tail strain relief;
• the artwork, circuit, tail and PCB-interface revisions tested;
• the circuit construction, LED attachment method and fixture supply/driver limits;
• each approved simultaneous-LED condition, including the shared supply or return path.

If the production controller is unavailable, use a documented bench fixture and label controller-dependent behavior provisional. Check each indicator separately, then the combinations the circuit owner permits. Record where voltage or current was measured so a later controller test can use the same reference points. This keeps a passed lamp check from being mistaken for final equipment validation.

Send an LED control sheet with the quotation package

Use an LED control sheet to collect the front artwork, mechanical centers, circuit diagram, tail pin table, connector data and intended test condition as those details become available. Add a housing section when a light pipe, bezel, adhesive recess or shallow cavity affects the optical stack.

You can request an LED membrane switch review before that sheet is complete. Share the intended use, any available panel photo or drawing, and either an approximate quantity or the circuit or indicator question you need to resolve. Mark fixed inputs and open choices separately. Baoshengda can review component construction and the information needed for a quotation; the buyer or PCB owner still approves driver behavior and final equipment acceptance. State whether the first sample is for artwork, electrical fit or optical review so its pass/fail record has a defined scope.
