Graphic Overlay Supplier Transfer: Which Revision Becomes the Master?

Use one release record to name the controlling file or approved reference for each feature in a graphic-overlay supplier transfer. Identify the graphic layer separately from any complete switch assembly. A photo can show the face layout and supplied parts, but it cannot establish the approved construction beneath the face. The buyer may request a provisional review while conflicts remain open; the equipment maker still approves geometry, appearance and assembly changes before sample or production release.

A graphic overlay supplier can compare print layers, film, windows, embossing, die-cut geometry and adhesive construction against the supplied evidence. Keep the quoted scope explicit: a standalone graphic overlay excludes the switch circuit, tail and connector unless those parts are listed. The pictured assemblies are discussed below as a visual reference, not as evidence of a completed supplier transfer.

Identify the graphic layer and the complete assembly separately

Higoal's membrane-circuit comparison published on 2026-10-14 separates the visible PET graphic overlay from an electrical circuit made on PET. Its comparison also describes copper-flex circuit options and explains that similar-looking membrane-switch faces can cover different electrical constructions. Check which layer the buyer's controlled files actually describe. This supplier guidance explains construction differences; it does not identify the circuit inside the samples pictured here or approve a replacement for a machine.

During a supplier transfer, a description such as “PET panel” can refer to the face film, an electrical substrate or a complete assembly. A matching front photo leaves that scope unresolved. If a quotation covers only the graphic overlay, its approval should not silently release a new circuit or connector. If it covers a complete panel, a change below the face needs its own recorded review even when the legends and window outline are unchanged.

Add a layer-identity row to the revision authority matrix. Link the controlled appearance PDF to the face-film and finish specification, and identify the adhesive die line separately. For an integrated panel, also cross-reference the approved assembly drawing and the circuit or tail revision. Record the part number and revision of the physical sample, who authorized it and which features it is allowed to represent. Mark an unknown layer or an unverified material as an open item, so the quotation and sample request do not imply a substitution has already been approved.

Start with a provisional transfer pack

An initial inquiry can begin with an existing photo or drawing if available, the intended equipment or enclosure, and an approximate quantity or a question the buyer needs to resolve. Add the part number, a likely governing file and the known discrepancies when they are available. State whether the request is for a standalone graphic film or an integrated panel. If the drawing status, color standard, adhesive die line or sample revision is uncertain, identify that gap instead of filling it from the most recent filename.

The supplier can return a discrepancy list, the information needed for a comparable quote and explicit quotation assumptions. The buyer can then decide which source controls each feature. A provisional price is not approval to cut production tooling or issue final artwork. The authority matrix below becomes the release record once the conflicts have owners and dispositions.

Build a revision authority matrix before sample release

Start with every item the new supplier may receive: released drawing, print-ready PDF, CDR or AI artwork, DXF cut geometry, adhesive die line, color standard, golden sample, enclosure drawing, inspection report and engineering change notice. Put the exact revision, date, owner and intended use beside each one.

Use this decision matrix:

• Released mechanical drawing: governs outside profile, cutouts, datum scheme, dimensions and tolerances, unless a later approved change notice says otherwise.
• Approved PDF or controlled visual proof: governs legends, symbol positions, print-layer visibility and the intended front appearance.
• Native CDR or AI artwork: supplies editable vectors and separations, but must be compared with the controlled PDF before production preparation.
• DXF or CAD cut file: supplies cut geometry only when its revision and datum origin match the released mechanical drawing.
• Golden sample: supplies the agreed reference for finish, color family, texture, window appearance and emboss shape. Mounted fit also needs the identified enclosure and a controlled mounted comparison. The sample should not silently override a dimension on the released drawing.
• Engineering change notice: authorizes a difference only when it identifies the affected part number, old and new states, approval owner and effective build.

The matrix should end with one sentence naming the quotation baseline and its open exceptions. For example, a buyer may assign a released drawing to geometry, a controlled PDF to appearance and a marked retained sample to finish only. This is a hypothetical division of authority, not evidence that a sample is approved. The owner must close the exceptions before sample release.

Separate editable source files from approval evidence

Editable artwork helps the supplier prepare print layers, but its approval status still needs checking. The file may contain hidden layers, construction marks, unused color swatches or older window geometry. It may also have been exported after the last signed PDF without formal release.

The supplier should compare the native artwork and controlled PDF at the same scale. Check overall outline, window border, key-zone centers, symbol placement, color callouts, cut lines, adhesive keep-outs and any selectively textured or transparent areas. Record every mismatch in a short discrepancy list instead of quietly choosing one version.

The same rule applies to DXF. A clean vector outline can still use a different origin or tolerance basis from the drawing. State the datum origin, units and scale. If the overlay registers to a display opening, screw pattern or molded bezel, dimension those functional features from the selected datums rather than from the nearest artwork edge.

Use the golden sample for the evidence it can actually provide

A retained sample can answer questions that files cannot. It shows whether the surface is matte or glossy, how a display window looks under real light, how a black border hides the housing edge, how embossing feels, and whether adhesive reaches the intended perimeter. Comparing retained samples can expose differences between those inspected items. Establishing production repeatability needs an agreed sampling and measurement record, not just a photograph of matching faces.

But a sample is not a complete specification. Color may have aged. Adhesive may have picked up dust or lost liner information. A manually trimmed prototype may not represent the production die. The sample may also belong to a previous enclosure revision.

Photograph the front, rear, liner, edges and mounted condition. Measure only features that the buyer agrees may be reverse-checked. When the sample and released file disagree, record the discrepancy and ask for disposition. Do not “split the difference” between them.

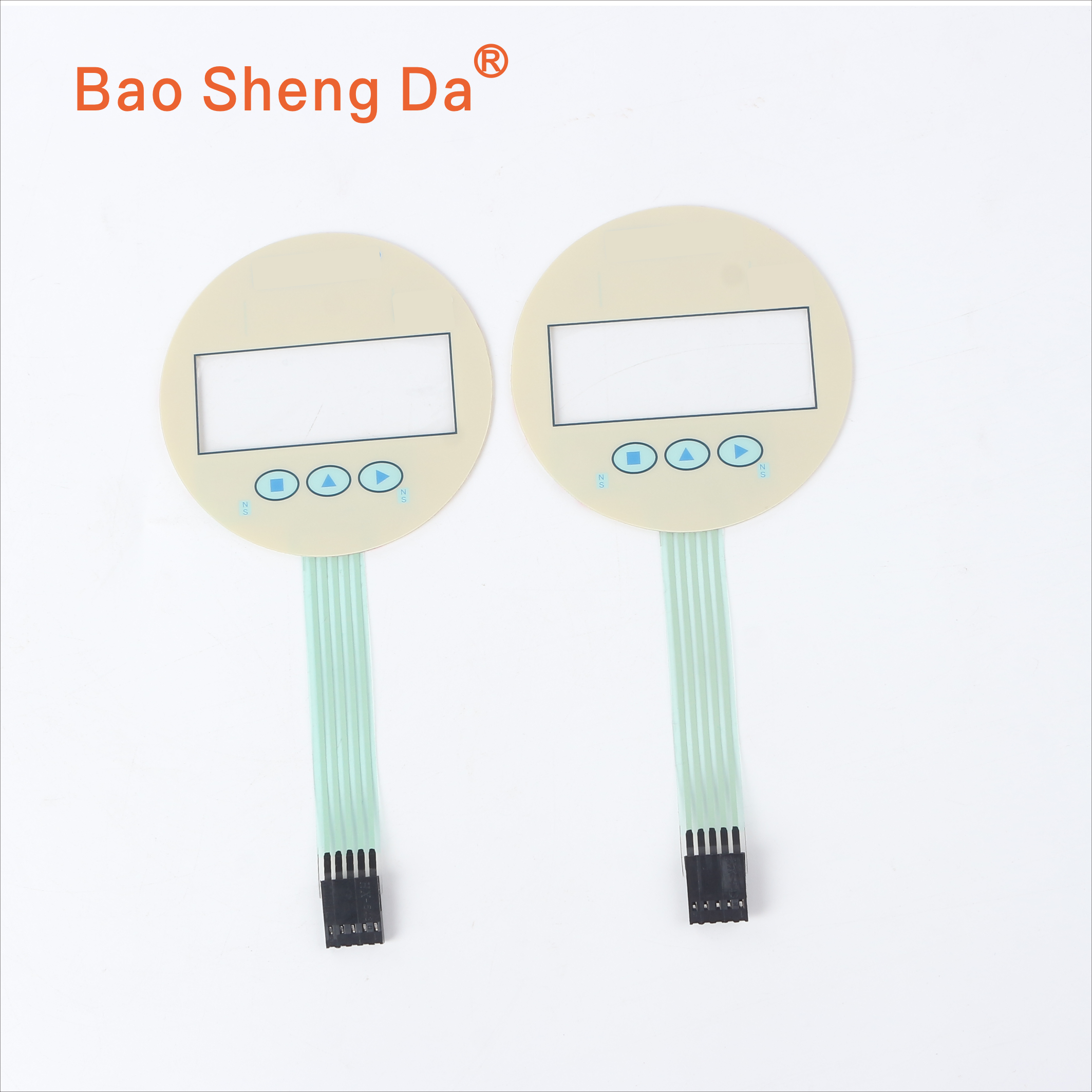

The cover image shows two similar printed faces with rectangular display-window borders, key areas, complete flexible tails and connector ends. These visible features help explain the scope difference between a graphic layer and a supplied panel assembly. The photo does not establish their hidden layer construction, process repeatability or approval status. Match a transfer sample to its identified drawing and inspection record rather than assigning authority from the image.

Resolve the conflicts that create expensive sample loops

Several recurring supplier-transfer conflicts can trigger another sample loop.

A window border may match the PDF but not the DXF. If the active display area is known, set the clearance from that active area and the housing opening, then update the controlled artwork. Do not approve the border by eye from a loose sample.

The adhesive die line may reach closer to the window or edge than the face artwork suggests. Review the housing land, cutout clearance and liner split separately. A visual proof cannot establish adhesive contact width.

A color name may be the same across revisions while the actual standard changed. Identify the Pantone, RAL, signed color chip or approved sample, plus the lighting condition used for acceptance. Printed color should be approved on the specified substrate and finish, not on a monitor.

Emboss centers may follow artwork icons while the switch domes or housing bosses follow another datum. Dimension the emboss and key centers from the functional mechanical datums. The new supplier should not infer dome alignment from the appearance PDF alone.

Finally, check part-number marking, revision marking and packaging labels. A correct overlay can still enter the wrong assembly if the identification rule is missing.

Define prototype approval as a controlled comparison

The first replacement sample should be compared against the authority matrix, not only against the buyer’s memory of the old part. Use a mounted sample whenever window alignment, edge land or adhesive fit depends on the enclosure.

The approval record should cover:

• outside profile and functional cutouts measured from the named datums;
• window opening, printed border and active-display clearance;
• legend spelling, orientation, icon position and print opacity;
• color and surface finish under the agreed lighting condition;
• emboss location, height and feel where applicable;
• adhesive type, die line, liner split and contact on the actual housing;
• edge condition after bonding and a defined dwell period;
• part number, revision marking and packaging identification;
• any approved deviation, its expiry and the production lots it covers.

Keep the signed sample, inspection record and approved PDF under the same revision identifier. If the prototype requires a change, issue a new revision or change record before repeat production. Handwritten comments on an untracked screenshot are not a release system.

Supplier boundary and limitations

A graphic-overlay supplier can review print layers, film selection, windows, embossing, die-cut geometry, adhesive structure and manufacturability against the files and samples provided. The supplier can also flag visible conflicts and prepare a controlled sample package.

The equipment maker remains responsible for declaring the governing revision, approving artwork and color, confirming enclosure and display geometry, controlling engineering changes, and validating the mounted product in its final environment. If the quoted item is a standalone overlay, it does not include a switch circuit, tail, connector, display electronics or firmware unless those items are explicitly listed in the scope.

A retained sample is reference evidence, not proof of material grade, environmental life or regulatory compliance. Those requirements need named specifications and an agreed validation plan.

Close the sample and production-release pack

The first inquiry can use the provisional pack above. Before a replacement sample is approved or production artwork is released, consolidate the controlled package rather than relying on separate email threads. Include:

• part number, product name and latest approved revision;
• released dimensional drawing with datum scheme and tolerances;
• editable CDR or AI artwork plus the matching controlled PDF;
• DXF cut file with units, scale and datum origin if applicable;
• adhesive die line, housing material and bonding-surface drawing;
• color standard, finish, texture, window and dead-front requirements;
• one or more retained samples, with their revision and approval status;
• enclosure photos or a non-confidential housing drawing showing functional interfaces;
• discrepancy list for every known file-to-sample conflict;
• prototype quantity, expected annual quantity and required approval date;
• mounted-sample test, inspection method and authorized approver;
• change history and any temporary deviation still in force.

You can request a graphic-overlay transfer review with the photo or drawing already available, if any, and describe the intended use. Give an approximate quantity or name the open question, such as which PDF governs the window or whether the quote includes the complete switch assembly. Baoshengda can compare the supplied evidence, flag construction or file conflicts and identify the information needed for a comparable quotation. Keep provisional assumptions separate from the buyer-approved sample and production-release record.
