Medical Device Graphic Overlay Artwork: Inputs to Freeze for Sample Builds

Medical device control surfaces should not move into a sample build until the overlay inputs are fixed in writing. For a graphic overlay, that means the window area, printed legends, surface texture, adhesive landing, tail or connector clearance and cleaning exposure are defined before the supplier prepares the first article. If these inputs stay open, the sample may pass a visual review but fail during cleaning, assembly or label review.

For a US medical-device program, the FDA's Quality Management System Regulation overview states that QMSR became effective on February 2, 2026, and incorporates ISO 13485:2016 by reference. The 2024 Federal Register final rule notice remains the underlying rule text. The OEM owns the device quality system and release decision. An overlay supplier can identify which artwork, material and sample revision it made; that record does not qualify the finished device.

Baoshengda's custom graphic overlay and film panel work can support the component side of that decision: PET or PC overlay films, printed legends, display windows, embossed or flat key areas, adhesive backing, die-cut shape and sample review. It does not decide the final medical device claim, cleaning protocol or regulatory file for the OEM. Those inputs must come from the device team.

Freeze the use environment before the artwork file

Start with the use environment, not the color file. A home-use monitor, therapy controller, cart-mounted device and handheld diagnostic accessory may all use a front graphic overlay, but their risks are different.

The buyer should state whether the panel is touched by bare fingers, gloves or a caregiver's cleaning cloth. Note whether the device is used near alcohol wipes, disinfectant sprays, skin oils, gel residue, condensation or bright exam-room lighting. If the overlay sits around a display, add the display size, viewing angle, expected glare control and whether a clear, matte or anti-glare window is needed.

This step prevents a common sample-stage failure: the printed face looks correct on a desk, but the surface finish is too glossy under room lights or the adhesive edge is placed where wiping pressure can start a lift path.

Separate label artwork from functional zones

A graphic overlay is not only a printed label. On a medical control surface it may include a display window, icon legends, button islands, indicator windows, screw or gasket keep-outs and a tail slot or connector route when it is integrated with a switch stack.

Before the supplier prepares tooling or film output, mark each zone by function:

• display or LED window area;
• icons and legends that must stay readable after wiping;
• button or key areas that need tactile location;
• adhesive land outside the visible window;
• cutouts, holes, gasket path and housing edge;
• tail exit, connector clearance or switch-stack interface if used.

This separation helps the supplier choose print side, ink protection, spacer location, adhesive mask and die-cut tolerance. It also helps the buyer review the sample by function instead of only asking whether the front view matches the PDF.

Choose PET or PC by cleaning, window and feel

PET is often chosen when the buyer wants abrasion resistance, stable printed graphics and a thin flexible front layer. PC can be useful where formability, a textured finish or impact feel matter. The right choice depends on cleaning exposure, window clarity, surface texture and the housing shape.

For a wiped medical panel, ask for the cleaning agent list before the film is selected. Alcohol, disinfectant wipes and repeated dry rubbing can affect gloss, ink protection and edge adhesion differently. If the device has a display window, define whether the window must stay optically clear, lightly textured or anti-glare. If the keys must be found by touch, decide whether embossing, domed areas or printed icons are enough.

A more textured surface can reduce glare and fingerprints, but it may make a small display window look less clear. A smooth window can improve readability, but it may show scratches or fingerprints sooner. These choices should be tested on the sample, not debated after mass-production artwork is released.

Document edge and adhesive limits

Many overlay complaints start at the edge. The part may lift near a curved housing, a screw boss, a display window corner or a tail exit. For a medical device, that is not only a cosmetic issue. A raised edge can collect residue, make cleaning harder or change how a user presses the control area.

Send the housing drawing with the overlay outline. Mark radius changes, texture on the housing, powder coating, painted surfaces, ribs, screw locations and any gap where liquid could sit. If the overlay must fit into a recess, include the recess depth and corner radius. If the part covers a display, send the display opening and tolerance stack.

For adhesive review, state the substrate material and finish. PET or PC film, ink layer, adhesive type, release liner, gasket area and housing coating work as a stack. A sample that bonds well to a smooth test plate may not represent the real housing.

Separate a visual proof from an installed sample

A recent supplier guide makes a useful distinction. In its graphic overlay prototype checklist, published 2026-10-09, JASPER describes visual, functional, assembly and production-intent specimens as answers to different open questions. Its point is not that every project needs four separate parts. A printed proof can show legend layout and color direction. It cannot establish adhesive performance on a textured housing. A loose converted overlay can expose a window-position error but cannot prove that the window reads correctly after bonding. A mounted sample answers fit questions only for the housing, film, process and revision actually tested. This is competitor-authored engineering guidance, not a Baoshengda sample result or a medical-device approval. The buyer still sets acceptance criteria, and the supplier documents the construction it submits.

The buyer risk is approving a desk sample for a decision it never tested. Write the question on the sample label and review sheet before anyone signs the artwork. For this front film, the minimum split is:

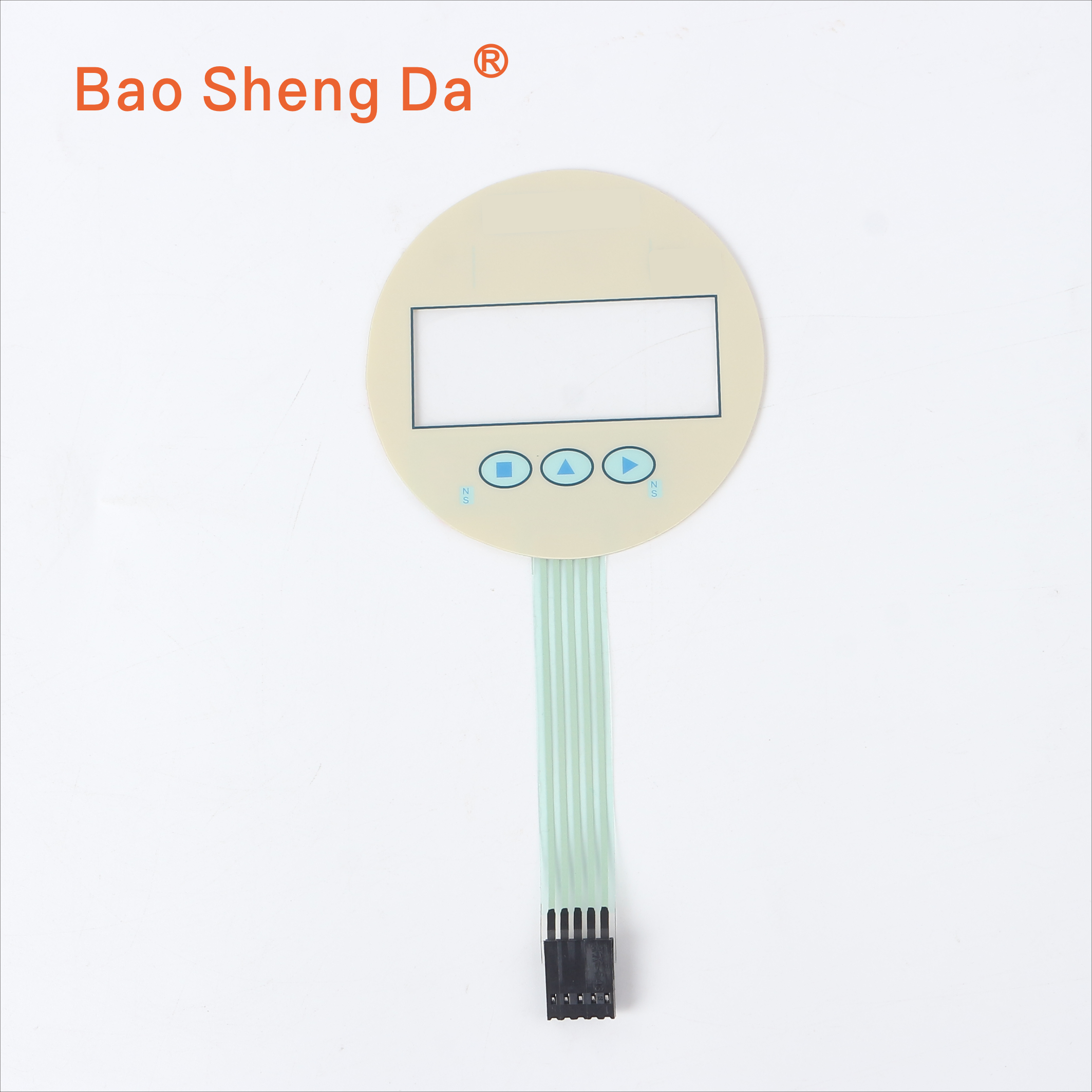

For the installed review, check the display window with the screen on and off, key-zone alignment over the actual switch stack, perimeter lift after the buyer's cleaning exposure, and whether liner removal distorts placement. Record the housing finish and sample revision beside each observation. The photograph on this page shows a Baoshengda sample face and tail. It does not show a mounted medical enclosure or a test result.

Close open items before production artwork release

Keep one short disposition record for every sample finding: the observed condition, specimen state, reference drawing or artwork revision, owner, and whether the item is accepted, needs a new sample, or remains unresolved. A provisional print color must not silently become the production color. If the window, legend, adhesive mask, housing coating or cleaning agent changes after approval, identify which earlier checks no longer apply and repeat those checks on the revised state.

The supplier can answer whether the proposed film, print, cut and adhesive construction matches its own sample record. The OEM decides whether the installed device meets its use, cleaning, labeling and quality requirements. An accepted visual proof releases only the visual question. A production-intent approval needs the agreed physical construction and a controlled file set.

What to send for the sample build

A good RFQ package should let the supplier quote and sample the same design. Send the front artwork, outline drawing, section stack, display-window requirement, surface finish, color reference, cleaning exposure, adhesive landing, housing material and estimated quantity. Add photos of the device front if a replacement or redesign is involved.

For medical projects, label the sample with its artwork and part revisions, film, adhesive, print side and the checks it was built to answer. Include the agreed cleaning or rub exposure and acceptance owner. If a first sample uses a provisional material or hand-cut edge, record that deviation before review. The supplier can document its component sample; the OEM decides whether the finished device meets its complete quality and regulatory requirements.

For a quotation and sample plan, send the controlled artwork and drawing revision, representative housing details, cleaning exposure, open-item record and requested quantity through Baoshengda's Request Quote page. Mark which questions need a visual proof and which require a mounted or production-intent part. That lets the supplier price the proposed graphic overlay without turning an untested approval into a production specification.
