Membrane Switch Sample Approval: Measure More Than One Key

An OEM can start a membrane-switch key-force enquiry with a front drawing or clear photo, key count, critical functions and the intended mounting surface. Exact force limits and probe settings may still be open. Identify them as quotation assumptions rather than treating the sample as approved. For approval, map center, edge, window-side and tail-side keys. Measure agreed positions on more than one physical sample with one method, then repeat the critical positions after mounting. Keep individual results by position so a convenient center-key reading cannot conceal a weak corner. Production inspection criteria should follow the agreed sample method and controlled revision.

A custom membrane switch can be reviewed for overlay, dome or contact structure, rear adhesive, circuit and tail construction. The equipment maker supplies the housing support and the force that its users need. The product photo shows three complete loose samples and visible key positions, not a force-gauge reading or an installed-panel test.

Start with a key-position map, not a panel average

Mark every active key on the front drawing with a stable reference such as K1, K2 and K3. Keep those references in the circuit drawing, inspection sheet and sample report even if the printed legend changes. Then group the keys by mechanical condition rather than choosing only the easiest buttons to reach.

At minimum, include:

• one key near the center of the panel;
• one key near each long edge when the layout is wide or tall;
• one corner key;
• one key beside a display window, indicator pocket or large cutout;
• one key near the tail exit or a change in rear support;
• any unusually large, small or embossed key;
• every safety-related or frequently used function identified by the equipment maker.

A panel with ten keys does not always require a detailed force curve for every key during early quotation. It does require a sampling plan that can reveal position effects. The buyer and supplier should agree which keys receive measured force data and which receive functional or tactile comparison.

Use one measurement method for every sample

Operating-force numbers are only comparable when the setup is controlled. State the probe size and shape, press direction, speed, support surface, measurement point and whether the reading is the peak force, force at electrical closure or another defined result. A narrow probe placed off center can make the same dome appear different from a flat probe applied normally to the key.

Agree which review stages apply to the construction:

• Loose sample baseline: confirms that the switch stack and dome positions can operate before enclosure effects are introduced.
• Flat support check: compares keys on a uniform rigid surface and helps locate stack or dome variation.
• Mounted sample check: reveals housing cavities, ribs, screw bosses, gasket compression and adhesive lands that alter feel.
• Repeated-part check: separates a position effect shared by all samples from a one-part assembly defect.
• After-use check: repeats selected readings after the agreed number of actuations or environmental exposure when the application requires it.

Do not mix handheld finger judgments with instrument readings in one numeric table. Operator comments are useful, especially for neighboring-key consistency, but record them as a separate tactile review.

Compare positions across more than one physical sample

One panel cannot show whether a soft corner is a repeatable design result or a single assembly issue. For prototype approval, compare the same mapped keys across the available samples. Use the same support and test order, and keep the samples at the same conditioning state.

A simple record may list K1 center, K4 window-side, K7 edge and K10 tail-side for Sample A, Sample B and Sample C. If all three parts show the same low result at K4, investigate the local structure. The display opening, spacer bridge, adhesive land or rear cavity may be responsible. If only Sample B is low at K4, inspect dome placement, contamination, spacer alignment or local lamination.

Avoid approving only from the average of all readings. Two high keys and two low keys can produce an acceptable mean while the user experiences an uneven keypad. Keep individual values, range and location visible. If a tolerance applies to every key, say so. If it applies only to selected critical keys, identify them.

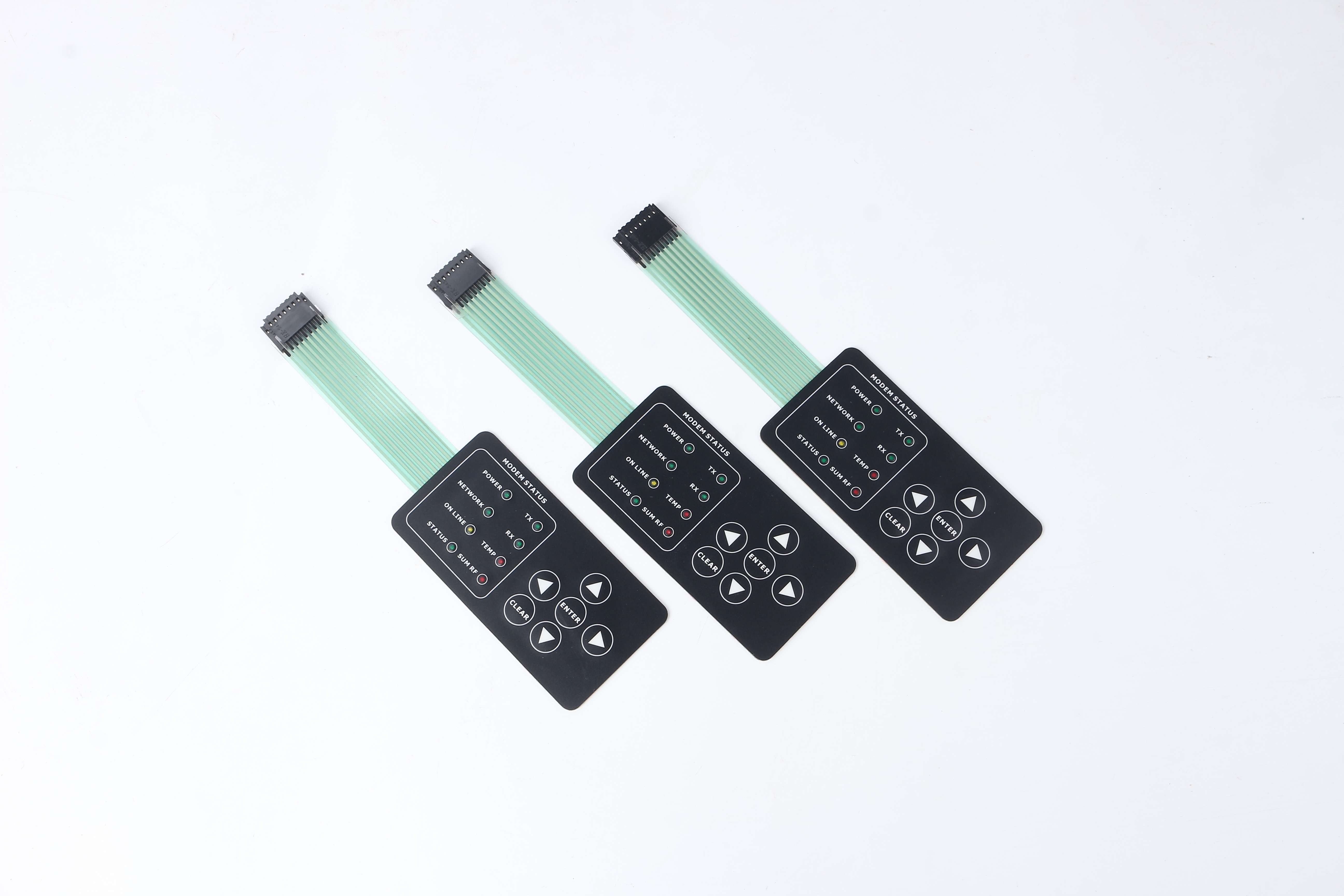

The cover photo shows three complete matching membrane switch samples with several key locations, indicator fields, full tails and connectors. It supports repeated-part and position-map review. It does not show a force gauge or a mounted enclosure, so it is not evidence that a specific force value has been achieved.

Recheck the panel after housing and adhesive change the support

A loose sample can feel consistent because the inspector naturally supports it with a hand or a flat table. The final product may support the panel only around the perimeter, over molded ribs or beside a recessed display. A gasket, bezel or screw pattern can also preload part of the switch stack.

Mount the sample on the actual enclosure or a dimensionally representative fixture. Apply the production-intent adhesive, liner-removal method and assembly pressure. Route the tail without pulling the nearest key zone. Then repeat the mapped readings after the adhesive dwell time defined for the trial.

When mounted results differ, inspect the section below each affected key. Look for an open cavity, housing step, raised boss, uneven adhesive contact, sharp tail bend or local compression near a window. Do not respond by changing the dome force alone until the rear support has been reviewed. A stronger dome may hide the fixture problem while increasing operator effort everywhere else.

The mounted trial should also check electrical closure, key return, neighboring-key activation and visible marks around windows or embossing. If the equipment will be used with gloves, a stylus or repeated wipe-down, add that operating condition to the approval plan rather than assuming the room-temperature bare-finger result covers it.

Set acceptance rules before the supplier measures

The RFQ should distinguish target, tolerance and comparison rules. A target is the preferred force. A tolerance is the permitted measured range. A consistency rule limits the difference between selected keys or samples. These three controls answer different questions.

Define whether the requirement is:

• an absolute range for every measured key;
• a tighter range for critical keys and a wider range for secondary keys;
• a maximum difference between neighboring keys;
• a maximum difference for the same key position across samples;
• an approved tactile reference plus supporting measurements;
• a functional-only requirement for non-tactile keys.

Also state the conditioning and measurement equipment expected for final approval. If the buyer needs a formal capability study in production, that is a separate plan from checking three prototypes. Sample measurements can establish the method and expose design problems, but they do not prove long-term process capability by themselves.

Agree the inspection record and approval responsibility

For the agreed sample plan, ask which key-position measurements and supporting records the supplier can provide. Confirm the scope and format before the sample order. A list of possible checks on a website is not a promise that each sample arrives with a fixed report.

Use a record structure that another engineer can repeat:

This is a suggested layout, not measured sample data. Keep tactile comments separate from instrument results, and record electrical closure separately when it is part of acceptance. Epec's membrane switch design guide distinguishes tactile and non-tactile constructions and notes that varied designs cannot share one general performance specification. Its component figures are not acceptance limits for this project.

A supplier inspection result records what was checked. The buyer's approval authorizes the next agreed production step. State whether approval covers the loose component or the mounted assembly, list unresolved conditions, and identify the person authorized to release repeat production.

Supplier scope and equipment responsibility

A membrane switch supplier can review the overlay, spacer, metal dome or contact structure, adhesive die line, circuit, tail and manufacturability. Ask the supplier to confirm which measurements it can perform on loose samples or on a fixture supplied or approved by the buyer. Agree on any additional fixture or measurement work before sampling.

The equipment maker remains responsible for the final housing geometry, rear support, bezel or gasket load, assembly process, user-force requirement and acceptance of the complete device. A force result from a loose panel does not certify the assembled equipment. A mounted result is also specific to the enclosure revision, adhesive condition, fixture and measurement method recorded in the report.

Key force is not the same as electrical reliability, sealing, legend wear or product life. Add separate checks when those characteristics matter.

Begin with the information you have

The first enquiry does not need a finished acceptance sheet. Send the current front drawing or a clear panel photo, approximate dimensions, key count, critical functions, intended mounting surface and expected quantity. Identify any known tactile preference, existing problem or reference sample. Mark the force target, tolerance, probe and enclosure support as open if the equipment team has not specified them. A provisional component quote can state those assumptions and the questions needed before a sample plan is fixed.

The supplier can review a proposed switch stack, tail and manufacturability against the available drawing. It cannot select the equipment's user-force requirement or approve a mounted result from an unmounted photo. If key feel varies across an old panel, include the position of the suspect keys rather than sending only a whole-panel average.

Close the sample plan before approval

For a measured prototype comparison, add these controlled inputs:

• front artwork and mechanical drawing with stable key references;
• a key-position map, critical-function list and number of physical samples;
• target force, tolerance and any between-key or between-sample consistency rule;
• probe geometry, press direction, speed and definition of the recorded force;
• tactile or non-tactile construction, panel stack, dome and embossing details where specified;
• housing section, rear support and display-window geometry;
• adhesive, bonding surface and intended dwell time;
• tail exit, connector and installed route;
• conditioning, glove, cleaning or environmental checks when the use case requires them;
• approval owner, drawing revision and the method for repeating selected measurements after mounting.

Keep quotation assumptions separate from acceptance evidence. Where a sample report is agreed, it should identify the measured keys and fixture conditions and distinguish loose from mounted results. Define the production-inspection method and revision separately; prototype approval does not specify a production sampling plan by itself. Three prototypes alone do not establish long-term process capability.

For sample quantity and quotation scope, use the custom membrane switch product page. The initial discussion can begin before force limits or a fixture are finalized. Use the Request Quote form with the available drawing, photo and key-position concerns. The membrane-switch engineering overview explains the component stack and tail options. Send the missing force limits or fixture details when the equipment team defines them, before sample approval rather than as an obstacle to first contact.
