Membrane Switch Tail Termination: Exposed Contacts or a Connector Housing?

Choose the tail termination with the mating connector and enclosure in view. An exposed-contact tail can suit a nearby PCB when the specified connector accepts the tail construction and its latch is accessible. A terminated housing may suit a harness or service disconnect, but it adds parts and assembly requirements. Neither route guarantees locking or reliability by itself. Identify the mating part, pin map and supplied assembly before requesting a membrane-switch sample.

For a custom membrane switch, the front graphic and key layout are only one part of the quotation. The electrical handoff at the far end of the tail needs its own decision.

What ribbon-cable assembly research contributes

An arXiv preprint submitted on August 7, 2026, describes an automated terminal-to-housing assembly system for flat ribbon cable harnesses. The authors treat multi-terminal insertion as a mechanically coupled task with flexible and dense geometric constraints, then use a sequence of alignment, sliding, weaving, and clamping before final locking.

The preprint is marked as under review. It concerns ribbon-cable harness assembly, not membrane switches, and does not evaluate a Baoshengda product. Its useful procurement lesson is narrower: a connector housing is not a cosmetic accessory that can be chosen after the cable geometry is fixed. Once separate terminals must enter and lock into a housing, alignment, insertion interference, terminal retention, and assembly sequence become part of the product definition.

That distinction helps a buyer separate two common tail architectures before requesting samples.

Use exposed tail contacts when the PCB interface is already controlled

A membrane-switch tail with exposed contacts normally mates directly with a specified PCB connector. This can keep the interface thin and reduce the number of added harness parts. It is often practical when the PCB is close to the panel, the connector location is fixed, and an operator can reach the latch during assembly.

The drawing still needs more than pin count and pitch. State the tail circuit type, finished thickness at the insertion area, contact side, exposed contact length, stiffener material and length, tail width, insertion direction, and the exact mating connector part number. Include a viewing direction for the pin map. Without that reference, pin one can appear reversed between the front view, circuit view, and PCB view.

Also show the first permitted bend and the service loop. The bend should not be created accidentally by a screw boss or by closing the rear cover. If the tail must pass through a slot, put the slot width, edge condition, and installed route in the mechanical drawing. The switch supplier can then quote the correct tail instead of treating the enclosure as unknown.

Use a connector housing when locking, distance, or service drives the design

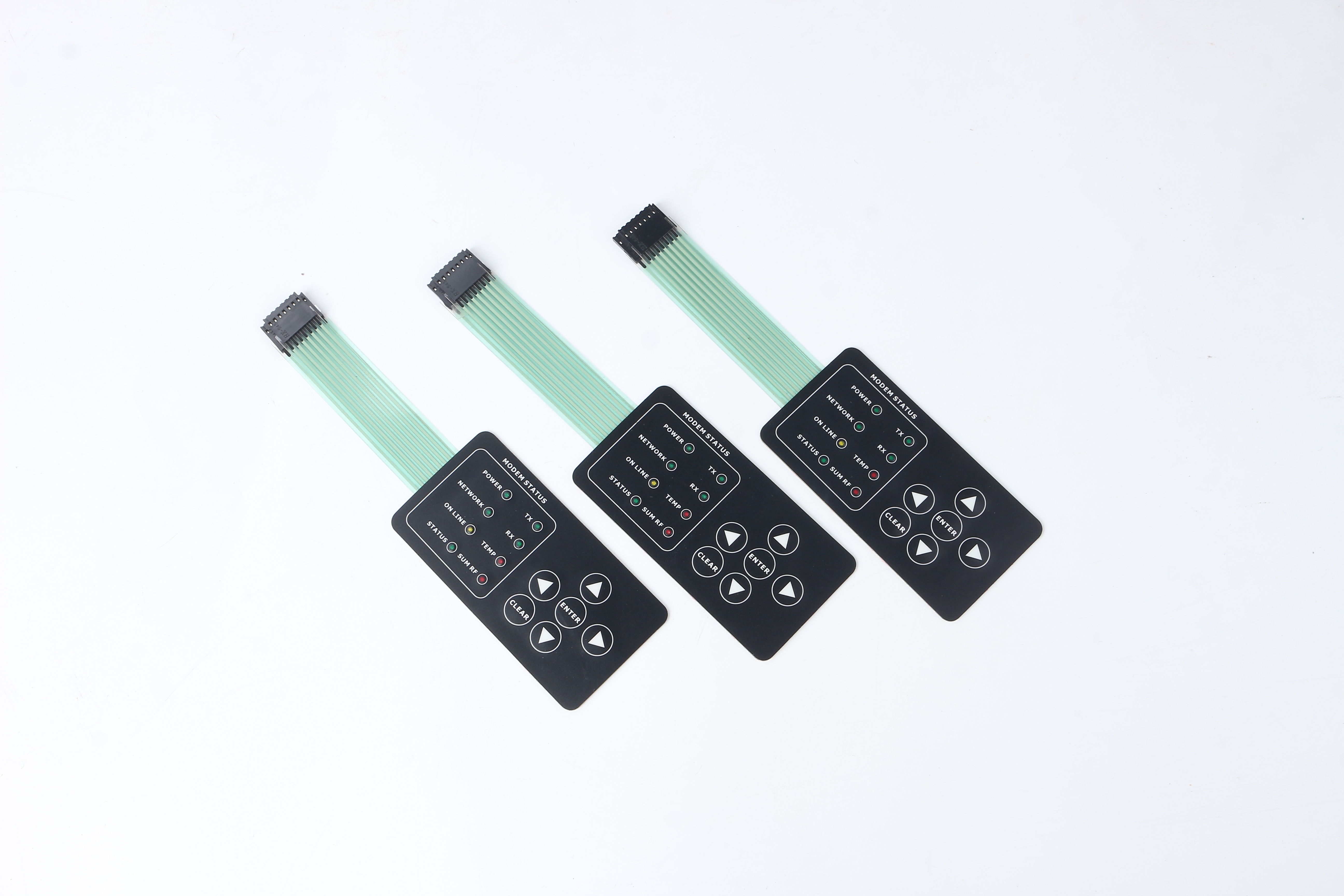

A terminated connector housing can make sense when the PCB is farther from the front panel, the connection must be keyed, the assembly team needs a positive lock, or field service requires a detachable harness. It may also allow the interface to join an existing equipment wiring architecture.

The tradeoff is added definition. The RFQ should identify the housing family, mating half, terminal series, wire or ribbon transition, pin population, keying, latch direction, pull direction, strain relief, and who supplies and assembles each part. A generic note such as “with connector” is not sufficient. Housings that look similar can use different terminals, retention features, insertion tools, wire ranges, and contact plating.

Do not assume that a printed membrane-switch tail can be crimped like a discrete wire. Some designs require a separate transition or harness rather than direct termination of the printed tail. The feasible construction must be confirmed from the actual tail stack and connector system before the quotation is locked.

Make the quoted termination scope explicit

In the quotation, separate the tail construction from any added connector or harness. A note saying "with connector" does not tell the buyer whether the price includes a housing, its contacts, a mating half or an adapter cable. Epec's membrane-switch design guide also treats circuit-tail configuration and termination as design inputs; its construction options are not a specification for a Baoshengda part.

Ask for omissions and unresolved assumptions to be written into the quote. If the mating connector is unknown, send clear photos and available markings for an initial review, then confirm its identity and fit before approving production. Similar-looking housings are not evidence of interchangeability.

Compare the two termination routes before sampling

This table is a selection aid, not a universal rule. Electrical current, circuit construction, environmental exposure, service duty, vibration, connector ratings, and the equipment validation plan can change the answer.

Freeze the drawing views that prevent a reversed or unbuildable tail

Keep the front, circuit and installed views coordinated in the release package.

1. **Front view:** key layout, display window, indicator positions, panel outline, and tail-exit location.

2. **Rear or circuit view:** conductor routing, common lines, LED lines when present, pin numbers, and a clear note stating the viewing side.

3. **Installed section or enclosure view:** connector location, insertion direction, latch access, first bend, service loop, nearby ribs, cover motion, and strain-relief point.

For exposed contacts, add a detailed contact-end view with pitch, contact width, exposed length, stiffener dimensions, and tolerances. For a connector housing, add manufacturer part numbers for the housing, terminals, mating half, seals or locks when used, plus the terminal cavity map. If an adapter harness sits between the membrane switch and the equipment loom, release it as a separate controlled item rather than hiding it inside a note.

A sample cannot resolve contradictory drawings. If the connector data sheet, pin table, and mechanical model disagree, stop and assign one revision as the master before tooling or assembly preparation.

Keep the supplier boundary explicit

A membrane-switch supplier can control the panel stack, printed circuit or FPC, tail outline, contact pattern, stiffener, tail exit, and agreed connector or harness work that appears in the quotation. The PCB owner controls the mating footprint and board orientation. The connector owner controls the approved housing and terminal series. The enclosure designer controls space, access, retention points, and bend clearance. The equipment owner sets electrical, environmental, vibration, service, and life acceptance.

If a connector or terminal is buyer-nominated, provide the controlled part number and an approved source. If the supplier is asked to recommend it, provide the mating architecture, electrical requirement, space envelope, service expectation, and target assembly process. Recommendation does not transfer responsibility for validating the complete equipment connection.

For a legacy replacement, identify the original termination before specifying a new one. A loose old keypad may show a black housing but not reveal the terminal series or cavity assignment. Photograph both mating halves, measure the available envelope, and confirm the pin functions electrically before assuming a visually similar replacement will fit.

Build sample evidence around the chosen interface

For exposed contacts, the sample record should show the actual PCB connector, full insertion position, latch state, contact side, pin-by-pin continuity, tail route, and the result after the enclosure closes. For a connector housing, agree records for terminal insertion and retention, cavity map, keying, latch engagement, strain relief, mating result, and continuity after the harness is routed. Confirm which checks and records the supplier will provide before sampling; this list does not imply a standard report is included.

Avoid an undefined hand-pull test. If retention matters, specify the point of load, direction, connector state, fixture, value, and acceptance source. If service reconnection matters, define the required mating cycles and the inspection after cycling. For a connection intended for one-time factory assembly, choose checks that match that use rather than an unrelated service test.

Send these items with the RFQ

• front artwork and panel outline;
• circuit schematic and pin map with viewing direction;
• printed PET, FPC, or other required circuit construction;
• tail exit, tail length, bend limits, and installed route;
• exposed-contact detail or complete connector housing and terminal part numbers;
• mating PCB connector or equipment-side connector information;
• electrical load for keys, LEDs, and shared returns;
• enclosure section showing access, clearance, ribs, and cover motion;
• one-time assembly or service-replacement expectation;
• environmental, vibration, cleaning, and life requirements owned by the equipment team;
• sample quantity and the electrical and mechanical evidence required for approval;
• responsibility matrix for switch, connector, harness, PCB, enclosure, and final validation.

Send the drawing package through the Request Quote form. The next decision is to freeze the termination route and mating part, then request a sample that proves the actual assembly rather than only the front-panel appearance.
