Keep the membrane-switch tail exit and rear connector outside the enclosure's expected water route. Draw the front adhesive perimeter, tail penetration and dry compartment separately. If a connector becomes wet, its location alone does not identify the entry point. Record where moisture first appears before changing the keypad construction. A loose front-film sample cannot approve the installed charger seal.
Current charger interfaces still need a separate water-path drawing
In its October product launch dated 2026-10-22, CNC Electric describes fixed and portable EV chargers. The YCE3 has a 4.3-inch LED display, scheduled charging, Wi-Fi connectivity and RFID activation. Those are the manufacturer's interface descriptions, not evidence that its charger uses a membrane switch or that a Baoshengda component has passed an ingress test. Protection claims for another model in the announcement cannot be transferred to a custom front panel.
For an OEM planning a similar combination of viewing and input functions, the useful component question is where each interface crosses the enclosure boundary. A display window, key field and reader area may sit close together on the front, while their cables or tails reach different places behind it. The enclosure drawing needs to show those routes and the intended dry area. The announcement provides no drawing from which to approve that arrangement.
Treat the launch as current product context for that review. It does not report a water leak, establish a Baoshengda supply relationship or justify copying another charger's rating. The proposed review below concerns a passive keypad sample and its mounting interfaces; the equipment maker defines the actual charger construction and qualification.
As background, the IEA electric vehicle charging chapter reports that public charging points grew by more than 33% in 2025 and exceeded 7 million at year-end. The official report PDF is an alternative way to open the report. These are historical deployment totals, not evidence of a defect or a component specification.
Baoshengda can review a custom waterproof membrane-switch construction, including the printed front, display window, key zones, adhesive land and flexible tail. The charger maker owns the enclosure rating, drainage, electrical isolation, PCB connector protection, accessibility and final environmental validation.
Follow the route from the front edge to the connector
A continuous front film reduces open seams around individual buttons. It does not automatically seal the panel cutout, adhesive edge, window, tail slot or connector. Use a section through the overlay, circuit, spacer or dome layer, pressure-sensitive adhesive, housing wall and any gasket or bezel. Mark the display opening and the adhesive landing around it.
Add arrows for runoff from upper joints, service-door seams, bezel lips and drain channels. Rain can approach from the side, and a defined cleaning method may direct water differently. Gravity and capillary paths can carry moisture behind the front interface. A downward tail exit helps only when its first bend, slot and connector stay clear of wet pockets. Check the full route, including a cable or tail that loops back toward the opening.

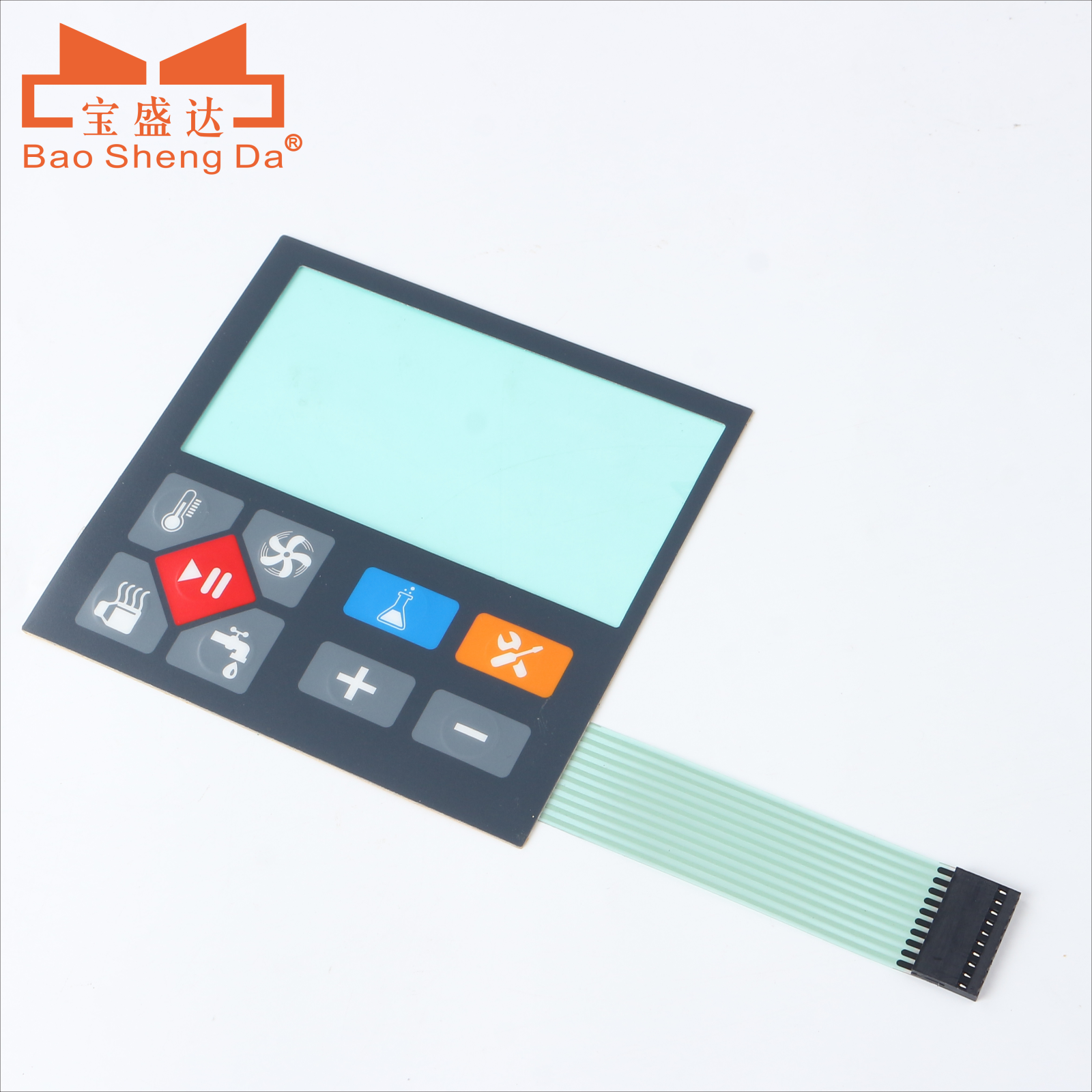

The original photograph shows a component sample with a bounded window, separate printed key zones, a flexible tail and connector. It does not show an installed charger, rear compartment, water path or test result. Use it to discuss the parts that need locating, not to approve the seal.
Keep the adhesive and window references together
Put the outer die cut, window boundary, key centers and adhesive die line on controlled layers referenced to the same housing datum. Include the display active area and bezel. A late display-cover or front-recess change can leave the artwork aligned while the adhesive opening still belongs to an older revision.
Review narrow adhesive bridges near the window and key field. Repeated presses can load a bridge, an unsupported window edge can flex during cleaning, and a tail slot can interrupt the perimeter. Housing steps, recess radii, ribs and powder-coating texture can reduce actual adhesive contact. Include the intended housing material and finish in the sample rather than approving only a smooth flat coupon.
A wider border gives more potential bonding land but can reduce the viewing area or crowd legends. Moving keys away from the window can improve support while increasing panel size or changing reach. Agree the viewing, actuation and sealing compromise on the mounted sample. No film name alone resolves it.
Locate the connector before shortening the tail
A short tail can simplify assembly but may put the connector beside a drain or service-door seam. A drier connector position may need more tail length, a controlled first bend and strain relief. Define:
- exit edge and orientation from the front-view datum;
- total length and free length before the first bend;
- clearance from ribs, fasteners and moving service parts;
- contact side, pitch, pin count and mating direction;
- stiffener length where a ZIF or similar connector is used;
- connector access, retention and strain relief without creasing traces.
The membrane-switch supplier can make the tail and contacts to the agreed drawing. The equipment designer selects the PCB connector, grounding, isolation and installed routing.
Record the first wet location before assigning a cause
Build a representative mounted fixture with the intended finish, adhesive geometry, window stack, tail slot, connector location and fastening method. Begin with a dry inspection and mark observation points on the section drawing. Record any previous cleaning or condensation history. A wet connector alone cannot distinguish an external leak from moisture already inside the enclosure. Use an unpowered representative enclosure for water-route exploration. Any electrical key check needs the OEM's defined isolation and safe test arrangement; this article is not an instruction to spray or operate an energized charger.
| Observation point | Record during the agreed exposure | What it does not establish alone |
|---|---|---|
| Outer edge and window border | First visible moisture, location and assembly revision | Whether the tail penetration or an upper joint also leaks |
| Tail slot and first bend | Where moisture appears relative to the slot and runoff arrows | That the front laminate itself leaked |
| Rear connector area | Condition before exposure, first wet location and condition before opening | Which upstream route brought the moisture |
| After opening the fixture | Photographs of the route and any changed or disturbed surfaces | That water found after dismantling followed the same route before opening |
Keep each photograph tied to its observation point and exposure sequence before assigning a leak cause. A wet connector by itself leaves the entry route unresolved.
If the first run leaves the origin unclear, agree a focused comparison that changes one suspected route while preserving the rest of the assembly. Record any masking or fixture changes because they can alter the flow. A dry connector after that comparison supports only that configuration; it does not prove the original enclosure passes a standard.
The OEM sets the water source, direction, duration, pressure where relevant, dwell, orientation and pass criteria. Keep visual route observations separate from electrical results. Check each key before and after exposure using the agreed safe method; record any in-exposure check only if the approved arrangement permits it. Also inspect adhesive contact, window edges, tail creases, rubbing and pull loads. Repeat the specified cleaning chemistry and method, then review legends, the window and bonded edges. Agree ultraviolet and temperature requirements separately. A spray photograph and continuity reading are not a complete ingress qualification.
Start the RFQ with the uncertain route
For a first inquiry, send an existing front or rear photo, sketch or drawing if available, the intended outdoor or cleaning use, an approximate quantity, or the water-route question you cannot yet resolve. Mark the tail slot and proposed connector location if known. You do not need a complete production drawing to ask which sample evidence is missing.
Before sample release, develop the panel section, display and bezel references, key functions, adhesive landing, housing material and finish, tail bend and connector details. Add expected rain or wash direction, drainage, cleaning agent, ultraviolet and temperature exposure, glove use and service-access needs. Identify the person responsible for the fixture, exposure procedure and final equipment acceptance.
Request a membrane-switch review for the marked water route. Ask the response to distinguish passive keypad construction from the housing, connector protection and test work owned by the charger team. Use the marked route and agreed observation record to define the sample review.
