When an ergonomic review changes an industrial console layout, the screen mockup is not the procurement drawing. Freeze the physical key positions, indicator openings, legend text, tail route and connector before a supplier revises artwork or quotes a new membrane keypad. A study published on August 12, 2026, used virtual reachability, visibility, operating comfort and component-importance analysis to reallocate controls on an oil rig driller's console. The same risk appears at sample stage when a buyer sends only a screen image: key zones, indicator holes and printed legends can no longer line up with the actual front panel and tail.
This page turns that layout decision into component-level checks. The referenced study did not test a Baoshengda keypad. It is used only as current evidence that industrial control layouts are still being changed for reach, sight lines and task frequency.
Why a console layout change reaches the keypad artwork
The original study published on August 12, 2026, combined virtual ergonomic simulation with component-importance, usage-frequency, operating-comfort and visual-attention weighting. Its output was not a new product drawing. It moved interface components to different panel areas according to the combined score.
A buyer should treat that step as a design input, not a quotation input. Moving a numeric entry block changes the space between domes, the printed key border, the gap to the function row and the distance from the keypad edge to the tail exit. Moving an indicator can change the size and position of a light-passing window. If the revised console drawing is reissued without a matching keypad revision, the supplier can only reproduce the mismatch more quickly.
Freeze the physical layout before artwork revision
Start with the console face, not the keypad artwork. Number each control zone and keep the same zone numbers in the console drawing, overlay artwork, dome layer, circuit drawing and pin map.
- Define the panel origin and datum on the console face.
- Record the X and Y position and size of every key zone.
- Separate function keys, numeric entry, confirm, cancel and status indicators.
- Keep emergency or safety-critical keys physically separate from routine input.

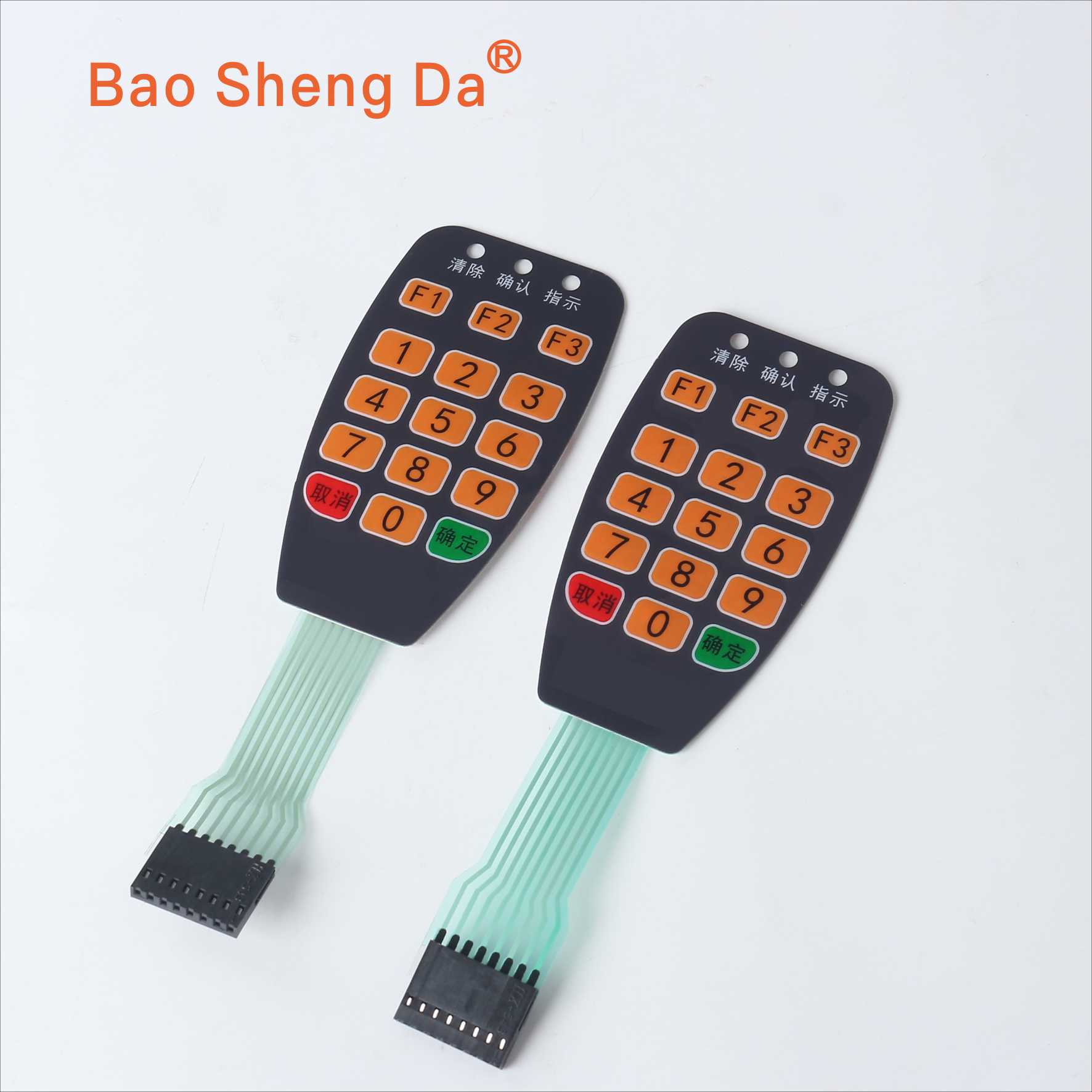

- Record the three indicator positions at the top of the keypad.
- Mark the tail exit point and the first permitted bend.
A custom membrane switch can provide the printed front, key zones, dome positions, tail and connector. It cannot correct an unstated console datum or a revision conflict. Those inputs must come from the buyer's latest controlled drawing.
Map each control to a key, LED and tail pin
A layout table makes the conversion explicit. Every row should trace one console item from the ergonomic decision to the physical keypad evidence.
| Console item | Keypad decision | Artwork and electrical evidence |
|---|---|---|
| F1, F2, F3 function row | Fixed key positions, target size and tactile dome | Printed legends, key borders and assigned tail pins |
| Numeric entry 0 to 9 | Grouping, spacing and repeat-use reach | Printed numbers, dome positions and tail pins |
| Cancel and confirm | Color contrast and reachable placement | Red or green print, switch layer and tail pins |
| Clear, confirm and status indicators | Three light-passing openings | Translucent windows and LED pin mapping |
| Tail and connector | Exit route, strain relief and connector pitch | Pin map, conductor count and connector orientation |
Do not let one person change the artwork while another changes the dome positions. The front print, switch layer, tail pins and connector drawing must share one revision package.
Separate the overlay from the switching layer
Some console revisions change only the printed surface, while others change the switch function. Ask which layer changed before quotation.
If the revision only changes legends, colors or indicator openings, the printed graphic layer may be the main change. If it moves a key or adds a command, the circuit layer, dome positions, tail pins and connector mapping must also be checked. If the console surface has no tactile switching function, review the graphic overlay product page as a separate route instead of assuming a membrane keypad.
Key map checks for UI changes
The first artwork release fixes a physical arrangement, but it does not freeze the console software. In a SABO IT field note published 2026-10-06, the author describes testing a physical industrial touch HMI after firmware changes. A moved control is reported as a finding rather than hidden by changing the robot's coordinates. The note concerns a touch panel and its equipment-level test, not a Baoshengda membrane keypad. Its useful signal for this page is the change trigger: a software revision can invalidate a previously accepted mapping between an operator command and a physical control. It does not establish keypad durability, switching performance or safe operation of any console.
The buyer risk is ordering the earlier printed legend or circuit again when the current UI assigns a different command, feedback state or control position. Compare the old and new software versions against the controlled console drawing before requesting replacement artwork. A screen change does not always require a new keypad: a changed label may need a new printed overlay, while a new physical command may change the switch circuit and pin map. A moved on-screen item that does not affect a physical key may need only equipment-level regression. Record the decision rather than silently carrying the old drawing forward.
| Change in the console release | Component check before artwork reissue | Validation owner |
|---|---|---|
| Command or legend renamed, same physical key | Compare operator wording, printed legend and controlled artwork revision | Buyer approves language and operator meaning; supplier confirms print file |
| Key position or active zone moved | Recheck bezel datum, key center, dome position, switch trace and tail pins | Buyer approves console layout; supplier reviews manufacturable stack |
| Indicator behavior or state changed | Compare LED opening, legend, circuit/pin assignment and visible status at the installed console | Buyer validates equipment behavior; supplier checks component mapping |
| Firmware changes response without physical relocation | Keep the component drawing only if control IDs, legends and pin assignment still match | Buyer reruns the relevant mounted-system function test |
For the next sample, trace each affected control ID through the released UI/firmware version, console zone, printed legend, dome or switch layer, indicator opening and tail pin. In the mounted console, actuate that control and check the expected response and status light under the buyer's test plan. A dimensional sample alone cannot prove that a firmware command is correct. Mark each discrepancy with its drawing version and owner. A supplier's component inspection is not machine-level validation.
Supplier boundary and limitations
The referenced study is original ergonomic research, not a Baoshengda test and not a certification of a console design. Baoshengda can quote and produce a custom membrane keypad, but the buyer remains responsible for the complete console, operator workflow, safety logic, enclosure fit, environmental validation and equipment-level approvals.
Do not expect the keypad supplier to infer the layout from a cropped screen image. Missing datum, revision number, indicator mapping or connector information increases the risk of a wrong first sample. The supplier can ask the right questions, but it cannot verify a console function it has not received.
Sample evidence checklist
Before approving the first sample, compare it with the same controlled revision used for the console drawing.
- Confirm every key center position against the numbered layout.
- Confirm all three indicator openings and their LED positions.
- Check legend text, font size and print contrast.
- Check cancel and confirm color zones.
- Bend the tail through the real enclosure route and reconnect the connector.
- Measure dome actuation on a representative key and at least one edge key.
- Record the artwork revision, circuit revision, pin map and sample date together.
RFQ package to send
Use the Request Quote page to send a complete package rather than one loose image.
- Console outline and datum with numbered zones
- Latest keypad layout with all key and indicator positions
- Artwork files and revision list, including the old and proposed control-ID/key map
- Current UI/firmware version, changed commands or labels, and any mounted-system regression findings
- Dome, spacer and circuit requirements
- Tail exit drawing and connector part number
- Pin assignment or LED matrix
- Material, adhesive, cleaning and environment requirements
- Prototype quantity and expected repeat-production volume
- Pass or fail test evidence and responsibility boundary
For a quotation, send both the released and proposed key maps with the latest console drawing through the Request Quote page. Identify any unresolved mounted-system response or indicator finding separately from component changes. A revised layout or firmware command is a reason to recheck the quote inputs; retain the key positions, indicator openings, tail route and drawing versions in the acceptance package.
