Why Medical Device Graphic Overlays Lift at Housing Edges

If the corner of a medical-device graphic overlay lifts, inspect the assembled housing before specifying a stronger adhesive. A fault may originate at the adhesive-to-housing contact, a sharp edge, an installation step or the specified cleaning exposure. An unmounted sample cannot identify the cause in the assembled device. Photograph the lifted edge and compare it with an unfailed area on the same housing revision. Record when the lift appeared: after lamination, enclosure assembly, storage or cleaning.

The device manufacturer defines the intended cleaning procedure and acceptance criteria. The FDA's human-factors overview includes maintenance such as cleaning within the device user interface. It does not select an adhesive or certify this overlay. The previously cited FDA sensor-based digital health technology page describes a device category. It supplies no bonding or cleaning specification for this component. Baoshengda can review the front-film and bonding construction against the buyer's actual housing and use conditions. The buyer retains device-level validation and regulatory responsibility.

Inspect the actual bonding land

Send a front view and section of the production housing with the overlay outline. Mark the recess, flat adhesive land, edge radius, window opening and any step or texture change. Add the housing material and coating, because a drawing that says only “plastic” leaves the bonding surface undefined. Compare the lifted corner with another corner; note whether a rib, screw boss or connector route sits behind it.

An overlay can bridge a gap on a flat drawing and still peel from a molded edge. If the usable land is interrupted or too narrow for the proposed die-cut, review the overlay outline or housing geometry before changing tape. Ask the supplier to state the proposed bonding area and any unbonded zones on the sample drawing. Do not turn a photographed gap into a universal minimum-width rule without testing the actual stack.

Specify the cleaning exposure and installation record

Name the cleaner or disinfectant the device owner intends to use, its concentration when known, wiping method, frequency and whether liquid can dwell at a cut edge. “Alcohol resistant” is too broad for a sample approval. Include the housing finish, surface-preparation method, lamination pressure or fixture, and time between bonding and the first inspection. Use the same approved cleaning method on the mounted sample, then record any edge lift, ink change or window haze separately.

The overlay supplier can propose a film, print and adhesive combination for review. It cannot establish medical-device cleaning compatibility from a generic PET or PC label. If the cleaner or housing coating changes, the earlier sample record does not prove the new combination. Keep the material choice provisional until the buyer tests the assembled part under its own conditions.

Check the window and edge together

Where a display or indicator sits beneath a clear area, show the display opening, printed border and housing datum on the same drawing. Check whether the border conceals the adhesive land at the allowed assembly variation. Inspect the mounted sample from the expected viewing positions, both before and after the buyer's cleaning trial. Record readability and any exposed adhesive or light gap rather than approving the print in isolation.

If a cutout or edge lies near a frequently pressed zone, show that position in the sample record. A surface that looks aligned before assembly may shift or lift after the housing is closed. The manufacturer should set the positional and visual acceptance limits for its own device. This article supplies no tolerance or medical qualification.

Distinguish a passive overlay from an integrated keypad

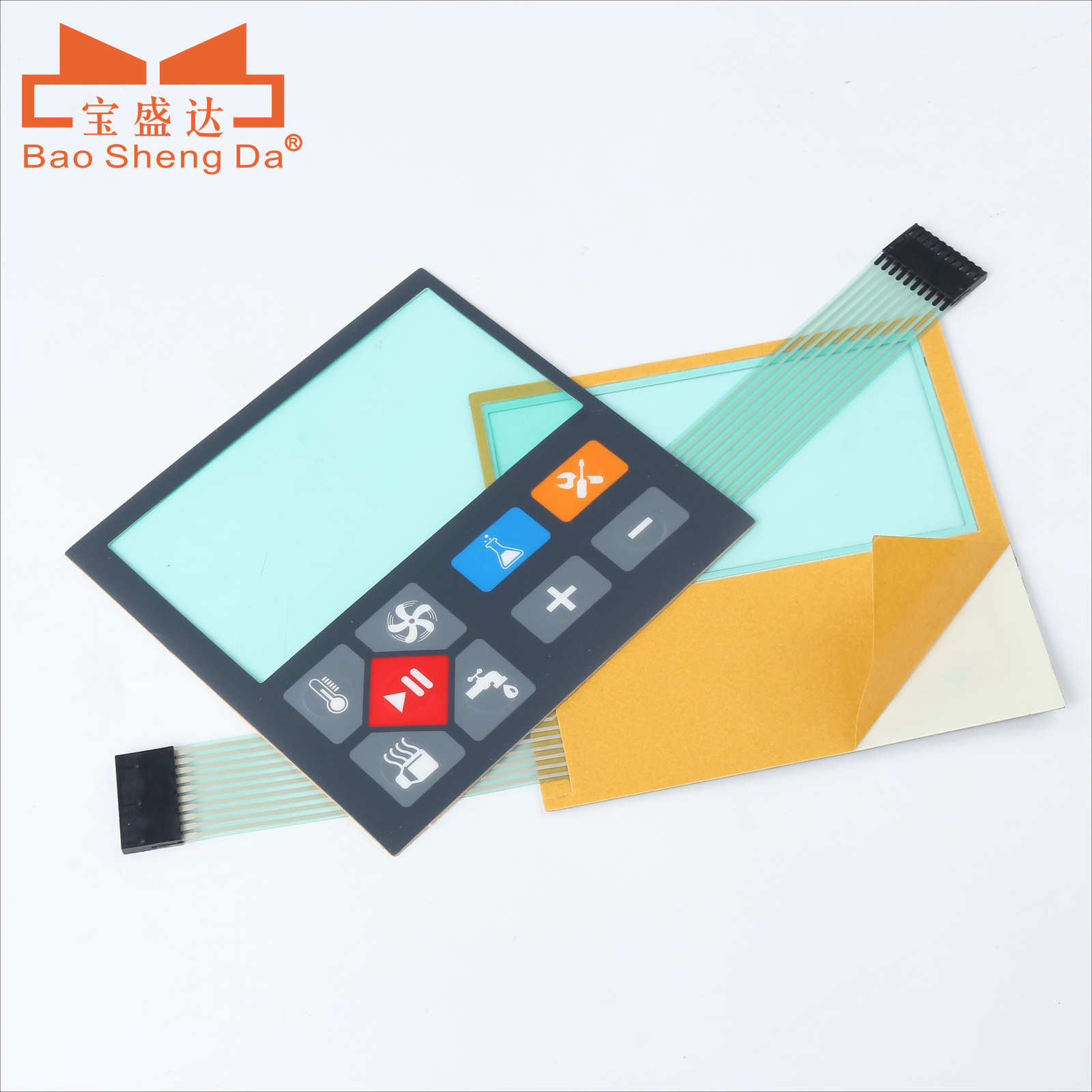

A passive graphic overlay and film panel is a printed front layer and does not inherently have a circuit tail or connector. The first-party photograph above shows an integrated HMI sample with printed key zones, a display window, adhesive liner and two tails. It illustrates construction features, not a medical-device installation or an edge-lift test.

If the purchased assembly also includes a membrane switch or flex circuit, review its tail separately. Record the tail exit, first bend, slot edge, connector location and any strain relief with the overlay mounted on the housing. A connector pulled during enclosure closing can load a nearby corner, but this must be checked on the actual assembly. If the order is only for a passive front film, leave connector pitch and pin-map fields out of that RFQ. For an integrated electrical assembly, also review the custom membrane-switch product and provide the controlled circuit and connector drawings.

Send the failure evidence with the RFQ

For a useful Request Quote, send the overlay artwork and die-cut drawing, housing section and surface finish, photos of failed and intact edges, intended cleaner and wiping method, assembly process, quantity stage and the current revision IDs. State whether the part is a passive film or integrated keypad. If there is a display window, include its active-area datum. Only add tail and connector information when the assembly includes them.

Ask for a proposed film, adhesive and die-cut stack with written assumptions. Approve a mounted sample against the buyer's recorded bond, cleaning, appearance and electrical checks as applicable. Keep a photo and result for the same housing, artwork and sample revisions. That record is more useful than a general promise that the edge will not lift.
