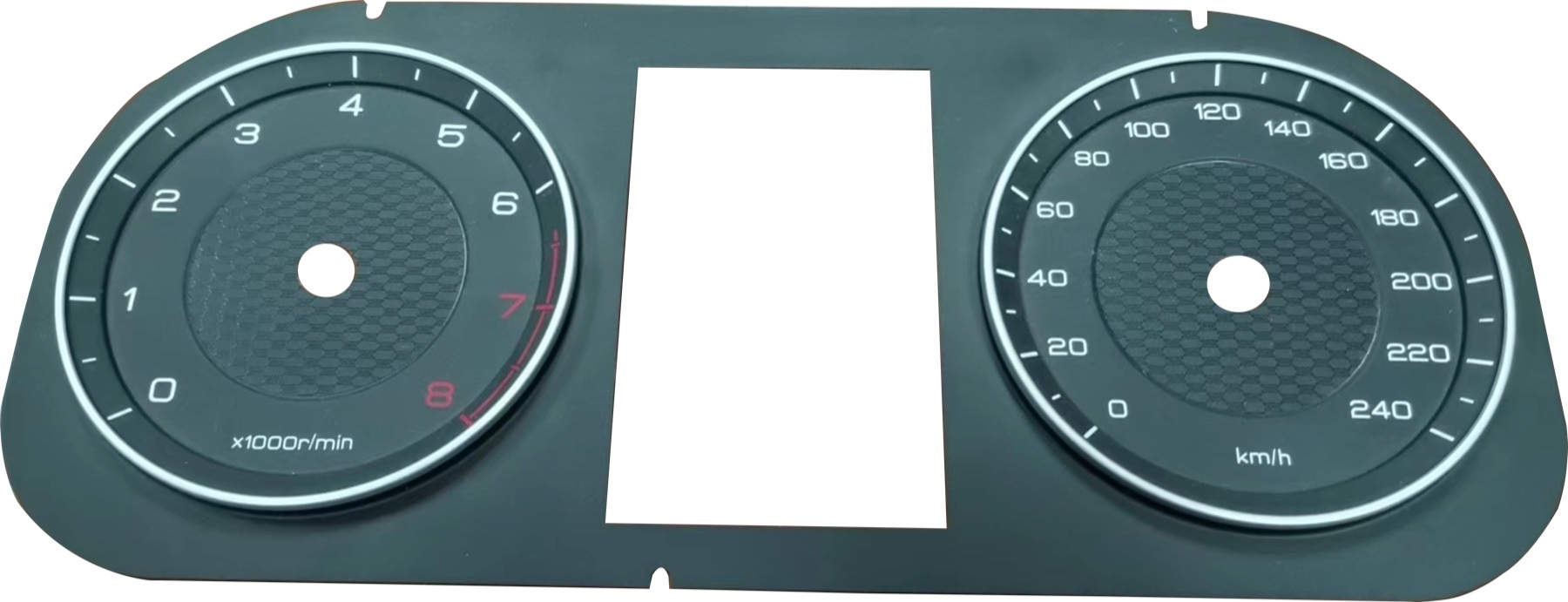

What Is an Automotive Dashboard Overlay?
An automotive dashboard overlay is a functional graphic film or panel used on instrument clusters, vehicle display windows, dashboard interfaces and control panels. It provides the visual surface, display window, protective layer and bonding interface between the vehicle electronics and the driver.
A well-designed automotive overlay must meet strict requirements for optical clarity, color consistency, surface durability, UV resistance, bonding stability, readability and long-term reliability under vehicle operating environments.
Compared with standard graphic overlays, automotive dashboard overlays often require more demanding material selection, printing control, surface treatment and forming accuracy.
Mounted-Sample Checks Before Artwork Release
Before approving an automotive dashboard overlay sample, review the part as a mounted vehicle HMI surface, not only as a printed film. The sample should prove that the display window, backlit icons, dead-front graphics, surface finish and adhesive layer still work after the overlay is placed on the real housing or a representative test fixture.
For most RFQs, the highest-risk details are heat exposure, glare from the driver angle, window alignment to the display, adhesive contact around curves or cutouts, and whether hidden icons look clean when the backlight is off and readable when the backlight is on.
What Baoshengda Supplies and What the Vehicle Team Owns
Baoshengda's scope is the custom overlay component and its manufacturing evidence. That can include substrate and surface selection, reverse printing, permanent and illuminated legends, transparent or dead-front windows, forming, adhesive conversion, dimensional inspection and sample review on a buyer-provided housing or fixture.
The vehicle maker, Tier 1 or module owner defines symbol meaning, control allocation, display and light-source architecture, luminance and color targets, dimming, electronics, software behavior, vehicle safety requirements and final validation. An overlay sample can confirm its own print, window, forming and bonding condition; it does not certify the complete dashboard or vehicle HMI.
Automotive Dashboard Overlay Structure
Anti-Glare / Anti-Scratch Surface LayerSurface treatment can be designed to reduce reflection, improve visibility and protect the panel against scratches, fingerprints and daily use.
Optical-Grade PC / PMMA SubstratePC, PMMA or other optical-grade materials can be selected based on transparency, impact resistance, forming requirements, operating environment and customer design.
Multi-Color Screen Printing LayerPrecision screen printing supports icons, warning symbols, scale marks, decorative graphics, brand elements and high-contrast visual effects.
Dead-Front Translucent Ink LayerDead-front printing allows display windows or icons to remain hidden when the backlight is off and become visible when illuminated.
Forming StructureDepending on the product design, 2D, 2.5D or 3D forming can be supported to match curved dashboard structures and instrument housings.
Rear Adhesive / Bonding Layer3M automotive-grade adhesive or customized adhesive systems can be selected according to the substrate, housing material, temperature exposure and bonding requirements.
Lock Day and Night Artwork to the Same Mechanical Datums
Day artwork, illuminated legends, blocker or diffusion layers, display-window borders and the outer profile should not be approved as unrelated files. Give every controlled layer the same origin, orientation mark and mechanical datum set. Name the revision of each layer used in a sample so a night-state adjustment cannot silently replace the approved front graphic.
| Controlled item | Buyer evidence to request |
|---|
| Day artwork | Permanent legends, gauge scales, visible borders, finish and color reference under defined ambient light. |
|---|
| Night artwork | Every transmitting legend, intended color group, off-state concealment and areas that must remain dark. |
|---|
| Window and blocker datums | Common reference points tying print layers to display openings, gauge apertures, outer profile and housing features. |
|---|
| Mounted optical sample | Lights-off, low-dimming and brighter-state views using the intended LED or representative light-guide and housing stack. |
|---|
A thin package can reduce module depth, but a shorter light-mixing distance may increase hot spots and make blocker registration more sensitive. Record that tradeoff before the artwork is treated as production-ready.
Technical Specifications
| Item | Options / Description |
|---|
| Product Type | Automotive dashboard overlay, instrument cluster overlay, automotive graphic overlay, vehicle HMI panel |
|---|
| Substrate Material | Optical-grade PC, PMMA or customized materials based on project requirements |
|---|
| Thickness | Thickness specified against the drawing, forming and optical requirements |
|---|
| Surface Treatment | Anti-glare, anti-fingerprint, anti-scratch, hard coating, matte or glossy finish |
|---|
| Printing Process | Multi-color screen printing, reverse printing, translucent window printing, dead-front printing |
|---|
| Visual Effect | Dead-front effect, hidden display window, high contrast icons, transparent or semi-transparent display areas |
|---|
| Forming Support | 2D, 2.5D or 3D forming available based on part structure |
|---|
| Adhesive | 3M automotive-grade adhesive, VHB adhesive or customized bonding solution |
|---|
| Environmental Resistance | UV resistance, temperature resistance, humidity resistance, abrasion resistance and chemical resistance available based on requirements |
|---|
| Applications | Instrument cluster, digital dashboard, vehicle display window, automotive control panel, EV HMI interface |
|---|
| Certification Support | ISO 9001 and IATF 16949 company certificates; review their stated scope. Agree required material-compliance records for the project. |
|---|
Final specifications depend on the customer drawing, optical requirements, vehicle environment, bonding structure and validation standards.
Customization Options
Baoshengda supports customized automotive dashboard overlay development according to customer drawings, samples or application requirements.
Visual and Graphic Customization
- Custom icons, scale marks, symbols and brand graphics
- Transparent or semi-transparent display windows
- Dead-front hidden window effect
- High-contrast day and night visual design
- Custom color matching and printing alignment
- Decorative texture or surface finish options
Material and Surface Customization
- PC, PMMA or other optical materials
- Anti-glare surface treatment
- Anti-fingerprint coating
- Anti-scratch hard coating
- UV-resistant ink and material options
- Matte, glossy or selective surface effects
Structure and Assembly Customization
- Flat, curved or formed dashboard overlay structure
- 2D / 2.5D / 3D shape support
- Customized adhesive and bonding structure
- Housing fit and assembly tolerance review
- Backlight window matching
- Display module matching
Automotive Environment Support
- UV exposure evaluation based on project requirements
- High and low temperature evaluation based on project requirements
- Humidity and thermal cycling support based on project requirements
- Adhesion and bonding reliability review
- Optical clarity and color consistency inspection
Heat, Glare and Backlight Window Tradeoffs
Automotive overlays are judged under changing light, cabin heat and mounting pressure. The right structure depends on how the finished module is viewed, cleaned and assembled.
| Decision Area | What Buyers Should Confirm |
|---|
| Heat exposure | Check film curl, adhesive edge lift, window flatness and print distortion after the sample is mounted to the housing or a similar surface. |
|---|
| Glare and finish | Compare matte, gloss, texture, anti-glare and hard-coat options from the driver or operator viewing angle, not only from a straight product photo. |
|---|
| Backlight windows | Confirm icon brightness, light leakage, dead-front hiding effect, window border alignment and night appearance with the actual LED, display or light-guide stack. |
|---|
| Adhesive fit | Review bonding surface texture, curvature, ribs, screw bosses, narrow bridges and whether adhesive coverage protects the edge after heat and assembly pressure. |
|---|
| Sample evidence | Ask the supplier to review the sample on the intended housing, with photos or notes for heat, glare, cleaning, window alignment and bonding concerns. |
|---|
These are project-review items, not universal pass/fail promises. Final validation standards should come from the buyer's vehicle module, housing material and reliability plan.
Common Sample Failures and the Evidence That Is Missing
| Observed failure | Review before revising the overlay |
|---|
| Legend is visible when it should disappear | Check off-state ink density, blocker coverage, adjacent light paths and the actual viewing angle. |
|---|
| Bright halo or dim edge | Check LED or light-guide position, diffusion distance, blocker clearance and registration to the common datum. |
|---|
| Window border shifts after forming | Compare flat-print and formed-part measurements, forming references, trim profile and housing location features. |
|---|
| Edge lift appears only after mounting | Review housing texture, curvature, narrow adhesive lands, ribs, screw bosses, cleaning and heat exposure. |
|---|
| Icons read well head-on but disappear from the seat | Repeat glare, finish and backlight review from the intended driver or operator viewing envelope. |
|---|

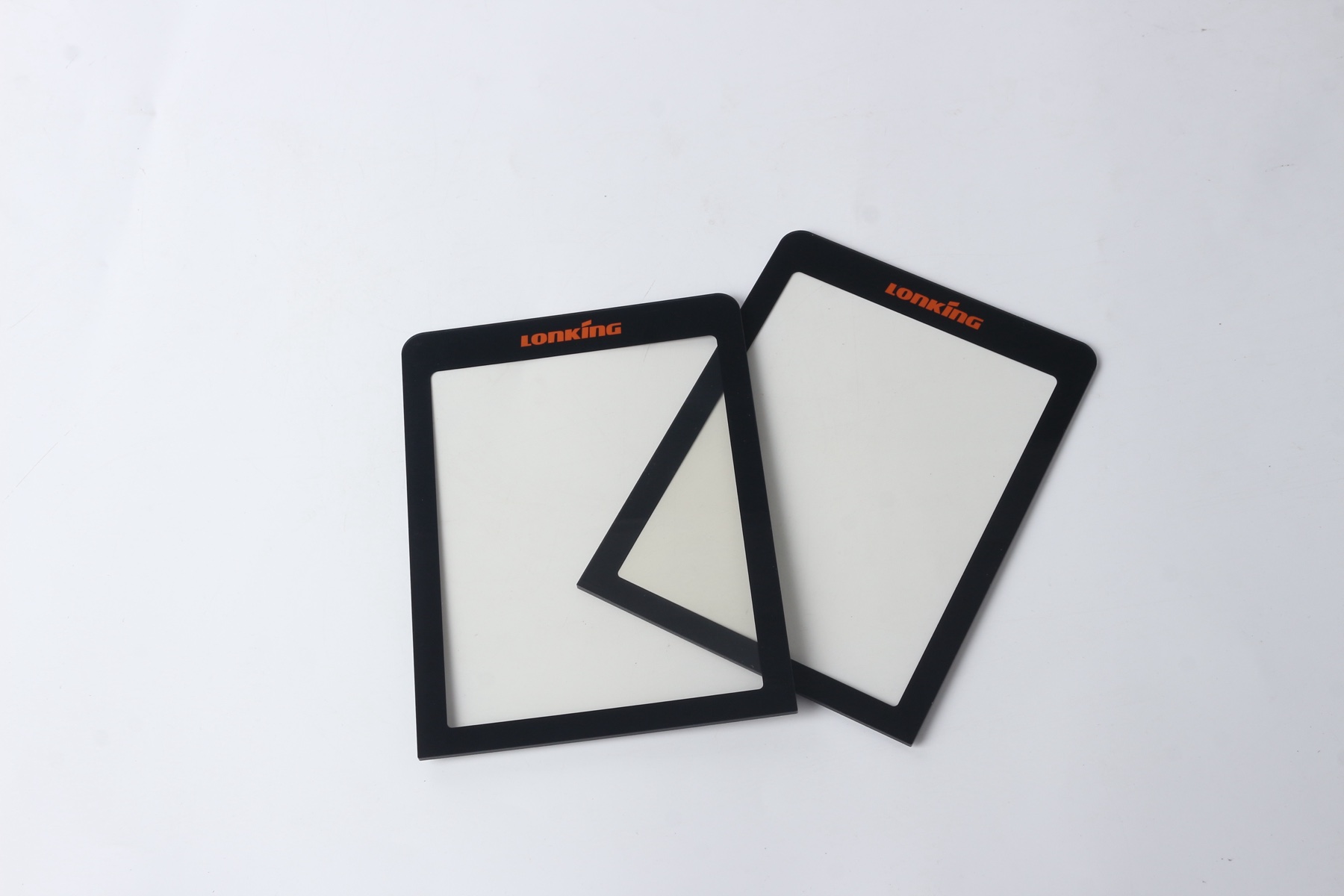

Applications
Baoshengda automotive dashboard overlays are suitable for different vehicle display and HMI applications.

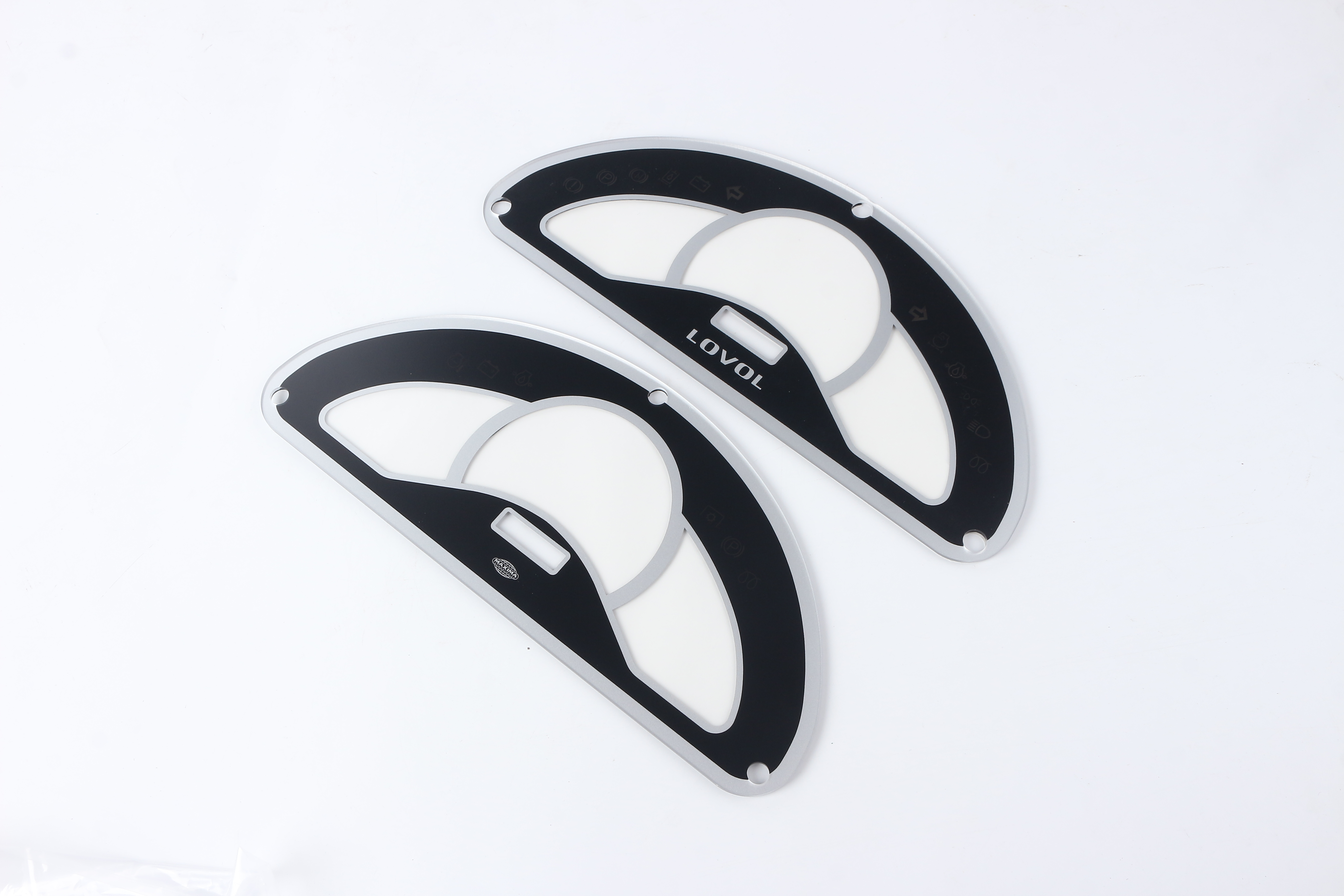

Passenger Vehicle Instrument Clusters
Used for instrument cluster windows, speedometer display areas, warning icons and decorative dashboard surfaces.
New Energy Vehicle HMI
Suitable for EV dashboard displays, digital cockpit panels, hidden display windows and modern vehicle control interfaces.
Automotive Interior Control Panels
Can be used in climate control panels, center console interfaces, seat control panels and other in-vehicle HMI modules.
Motorcycle and Outdoor Vehicle Displays
For motorcycle dashboards, e-bike displays, ATV panels and outdoor vehicle instruments requiring UV, weather and abrasion resistance.
Industrial and Special Vehicle Interfaces
Applicable to construction machinery, agricultural equipment, industrial vehicles and control panels operating in harsh environments.
Why Choose Baoshengda?
Manufacturing Roots Dating to 1989The production history began in 1989; Baoshengda became the independent company in 2007 and continues to manufacture HMI components, functional films and automotive display-related panels.
Automotive Quality System SupportReview the current ISO 9001 and IATF 16949 company certificates and the manufacturing scope in each document.
Integrated Engineering ReviewWe support material selection, printing feasibility, forming design, adhesive structure, display window alignment and assembly review.
Custom Manufacturing CapabilityWe can support automotive dashboard overlays, motorcycle dashboard overlays, custom graphic overlays, membrane switches, HMI panels and integrated functional film modules.
Application-Focused Design SupportWe help review not only the artwork, but also the application environment, bonding method, display visibility, backlight matching and long-term reliability requirements.
Global B2B SupportBaoshengda serves customers in automotive electronics, industrial control, medical devices, communication equipment and smart electronic products.
Quality and Testing
Quality control can be planned according to the customer product requirements and application environment.
- Appearance inspection
- Dimensional inspection
- Color consistency inspection
- Transparency and light transmission inspection
- Surface scratch and coating inspection
- Printing alignment inspection
- Adhesion and bonding review
- High and low temperature evaluation where applicable
- Constant temperature and humidity testing where applicable
- Salt spray testing where applicable
- UV and weather resistance evaluation where applicable
- Material compliance support such as RoHS / SGS reports where applicable
For automotive dashboard overlay projects, we recommend confirming the optical, environmental, bonding and assembly requirements at the early design stage.
Design Information Needed for Quotation
To help us provide a faster and more accurate quotation, please send the following information if available:
- 2D drawing or 3D structure file
- Artwork file, icons, scale marks or display window layout
- Separate day-state artwork, night legend map and blocker or diffusion intent
- Common datums, orientation marks, tolerance targets and revision identifiers for each controlled layer
- Material requirement, such as PC, PMMA or other optical substrate
- Thickness requirement
- Surface treatment requirement, such as AG, AF, hard coating or matte finish
- Dead-front or translucent window requirement
- Backlight or display module matching requirement
- LED or light-guide layout, stack height, color groups, dimming states and buyer-owned optical targets
- Glare, reflection, night-readability or driver-viewing-angle concerns
- 2D / 2.5D / 3D forming requirement
- Adhesive and bonding surface information, including housing material and texture
- Application environment, heat exposure, UV, cleaning and reliability requirements
- Sample approval evidence required by your team, such as mounted photos, backlight review or heat-condition notes
- Required sample matrix, such as lights off, low dimming, brighter state, oblique view and mounted housing condition
- Estimated annual quantity
- Sample, reference part or product photos
If your design is still in the early development stage, you can send us your concept drawing or sample photos. Our team can help review material, printing, forming and bonding feasibility.
Automotive dashboard overlays engineering review PDF
Use the construction, mounted-sample checks and quotation checklist with your current drawing. This note is not a fixed performance specification, test report or finished-equipment approval.
Download Engineering Review PDFRevision 2026-10-15. Project requirements and acceptance criteria are agreed before sampling.
FAQ
What should buyers check before approving an automotive dashboard overlay sample?
Buyers should review heat exposure, glare, surface finish, display-window alignment, backlight uniformity, dead-front icon visibility, adhesive contact on the real housing and any edge lift after mounting.
Which material is used for automotive dashboard overlays?
Optical-grade PC, PMMA or other specified films can be selected according to transparency, impact resistance, forming requirement, surface finish, window clarity and vehicle environment.
Can Baoshengda make dead-front and backlit dashboard overlays?
Yes. Baoshengda can support dead-front translucent ink, hidden display windows and backlit icons. The artwork, ink stack, light source and viewing angle should be reviewed together before sampling.
Does Baoshengda supply the complete automotive HMI system?
No. Baoshengda supplies custom overlay and related interface components. The vehicle maker or Tier 1 owns the display, lighting electronics, firmware, symbol meaning, optical targets and final vehicle validation.
What RFQ information is needed for dashboard overlay quotation?
Please send drawings, separate day and night artwork, window and datum layout, housing photos or 3D files, material and surface requirements, backlight information, adhesive details, validation conditions, quantity and sample schedule.
When should a dashboard overlay sample be revised?
Revise the sample if mounted windows shift, glare makes icons hard to read, backlit areas are uneven, adhesive lifts near edges or curves, cleaning changes the surface, or the housing fit was not represented in the first sample.
